Pressure Type Temperature Gauge

Design

Measuring principle

Bourdon tube system

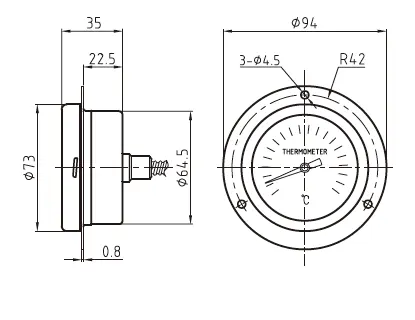

Nominal size in mm

63, 100, 150

Connection design

1, plain stem(without thread)

2, male nut

3, union nut

4, compression fitting(sliding on stem)

5, Union nut with fitting

6,Compression fitting (sliding on capillary)

Unit(Scale range)

°C

Option:

■ °F

■ °C/°F (dual scale)

■ °F/°C (dual scale)

Process connection

■ Plain, without thread

■ G ½ B

■ ½ NPT

■ G ½ female

■ ½ NPT female

■ M20 x 1.5

■ M24 x 1.5 female

others on request

Accuracy class

Class 2

Stem diameter

8mm, Stainless Steel 316L

Option

■ 6mm

■ 6.35 mm

■ 8 mm

■ 10 mm

■ 12 mm

Others on request

Case, bezel ring

Stainless Steel 304

Option:

Stainless steel 316L

Connection

Stainless Steel 316L

Window

Instrument glass：100, 150

Transparent plastic: 63

Option:

Laminated safety glass, clear non-splintering plastic

Dial

Aluminium white, black lettering

Pointer

Aluminium, black

Capillary entry

Back or bottom

Capillary

Length to customer specifications (max. 10 m), Ø 2 mm, stainless steel 1.4571, bending radius not less than 6 mm

Permissible operation press at stem

25 bar max, static

Ingress protection

IP65 per IEC 60259 / IEC 529

Operating conditions

Ambient temperature range (at the case)

0 ... +40 °C max. (others on request)

Storage temperature range

Without liquid dampening                                       ■ -50 ... +70 °C

with food-compatible liquid damping                     ■ -20 ... +60 °C

With liquid dampening                                          ■ -50 ... +60 °C

Scale range in ℃

Measuring range in ℃

Scale spacing in ℃

-60 … +40

-50 … +30

1

-40 … +60

-30 … +50

1

-30 …+50

-20 …+40

1

-20… +60

-10… +50

1

-20… +80

-10… +70

1

0 … 60

10 … 50

1

0 … 80

10 …70

1

0 … 100

10 … 90

1

0 … 120

10 … 110

2

0 … 160

20 … 140

2

0 … 200

20 … 180

2

0 … 250

30 … 220

5

0 … 300

30 … 270

10

0 … 400

50 … 350

10
