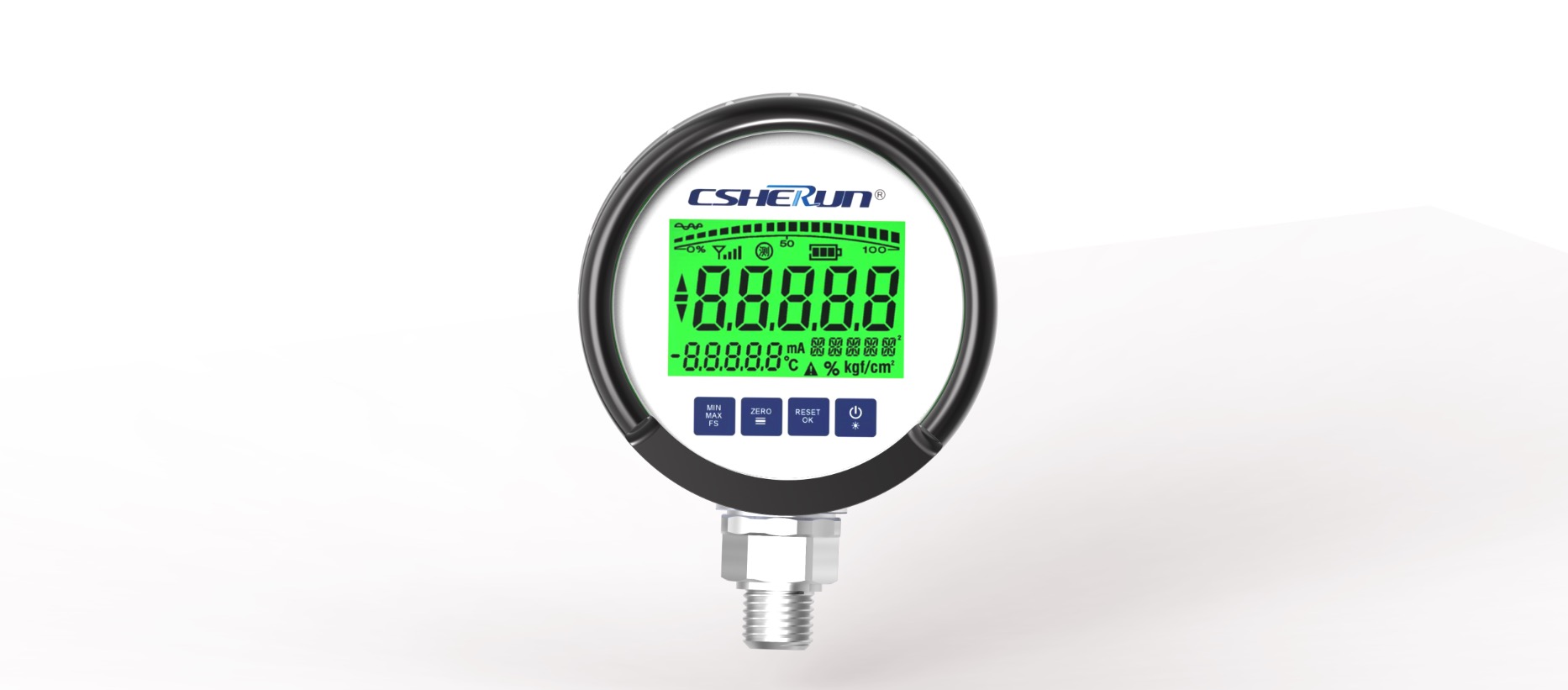

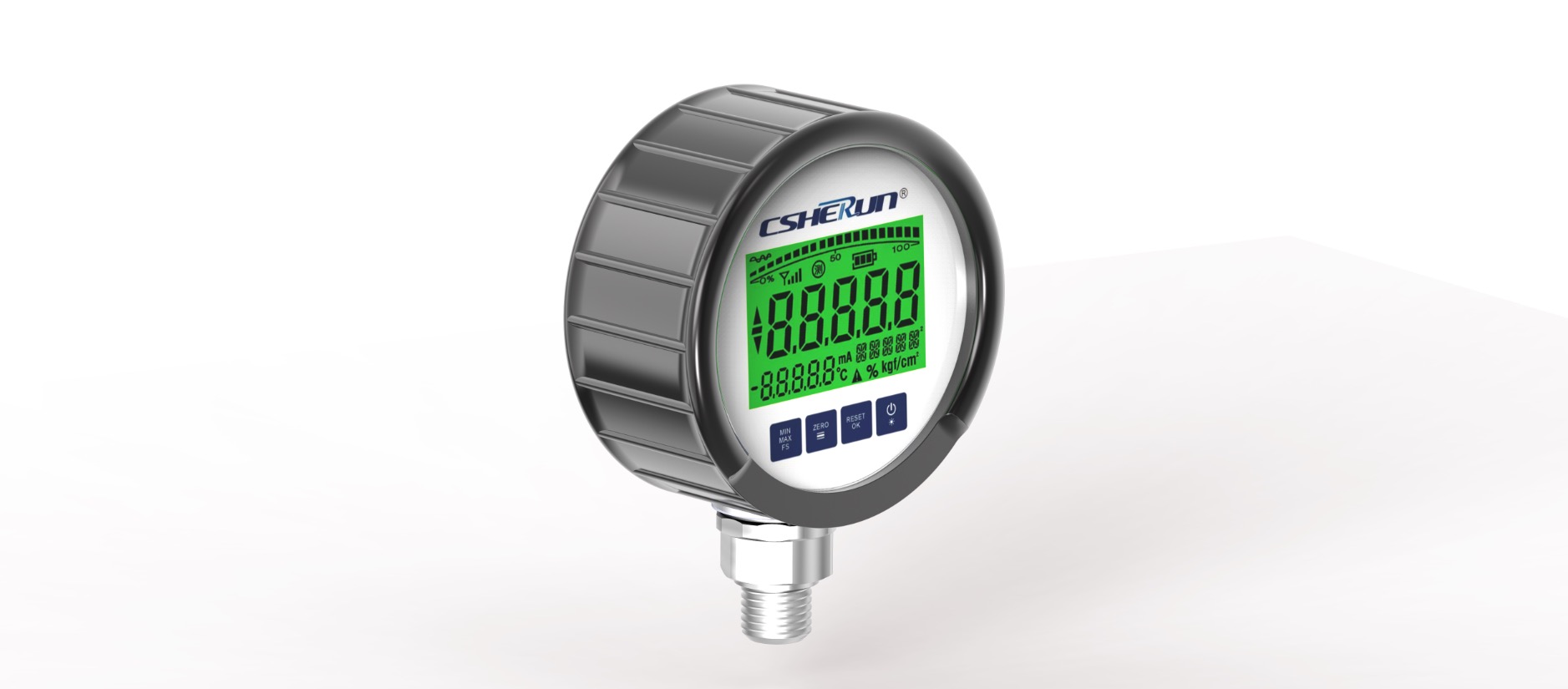

0.05%FS Digital Pressure Gauge TPS.10

Applications

● Oil and gas industry

● Maintenance and service facilities

● Calibration service companies and service industry

● Test bench / gauge repair facilities

● Leak test

Features

● Gauge pressure, absolute pressure or compound pressure

● Measuring ranges up to 600MPa

● 0.05%, 0.1%, 0.2%FS accuracy

● Full scale total error band and temperature from -40°C to 80°C

● RS232 or RS485 output

● Display can be rotated 330° axially

● 19 Switchable pressure units

●  Type-C rechargeable

Technical Data

Case Size

100mm(4”)

Range

-100 ... 10kPa ~160MPa

Accuracy

0.05%FS, 0.1%FS, 0.25%FS

Output

RS485 (Option RS232)

Pressure Connection

Lower connection G1/4A (for custom)

Approval

CE, SIL3

Long Term Stability

≤0.1%FS/year

Operation Temperature

-20°C～80°C

EMC

IEC 61326

Vibration

IEC 60068-2-6/ 10…500 Hz, 5g

Shock

IEC 60068-2-29/25 g, 11 ms

Enclosure Rating

IP67

Ordering information

1）Additional request. Contact Factory

Dimension in mm

Product usage instructions
