Data Logger TPS.10A

Applications

● Oil and gas industry

● Maintenance and service facilities

● Calibration service companies and service industry

● Test bench / gauge repair facilities

● Leak test

Features

● Gauge pressure, absolute pressure or compound pressure

● Measuring ranges up to 600MPa

● 0.05%, 0.1%, 0.2%FS accuracy

● Full scale total error band and temperature from -40°C to 80°C

● Bluetooth communication

● Communication with CSHERUN’s APP Link Mobile App

● RS232 or RS485 output

● Optional with data logger function 1,000,000 data sets recording

● Display can be rotated 330° axially

● 19 Switchable pressure units

●  Type-C rechargeable

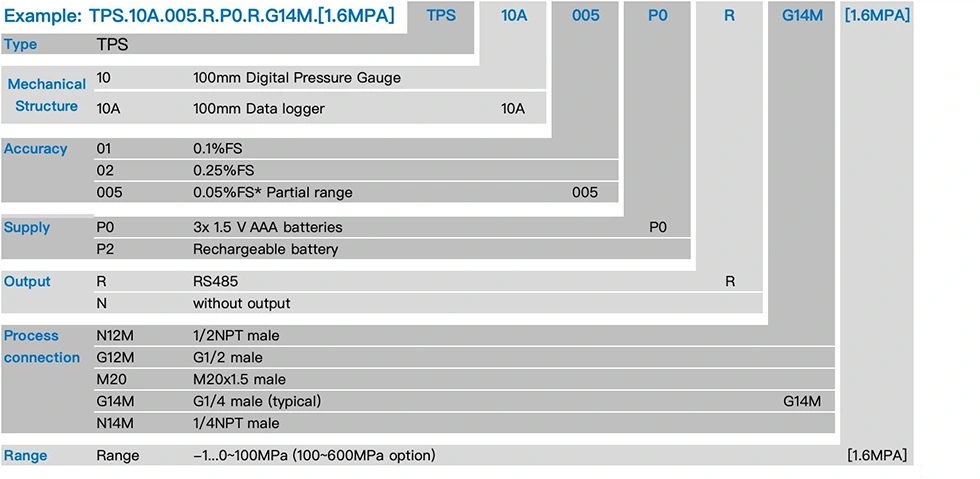

Ordering information

1）Additional request. Contact Factory

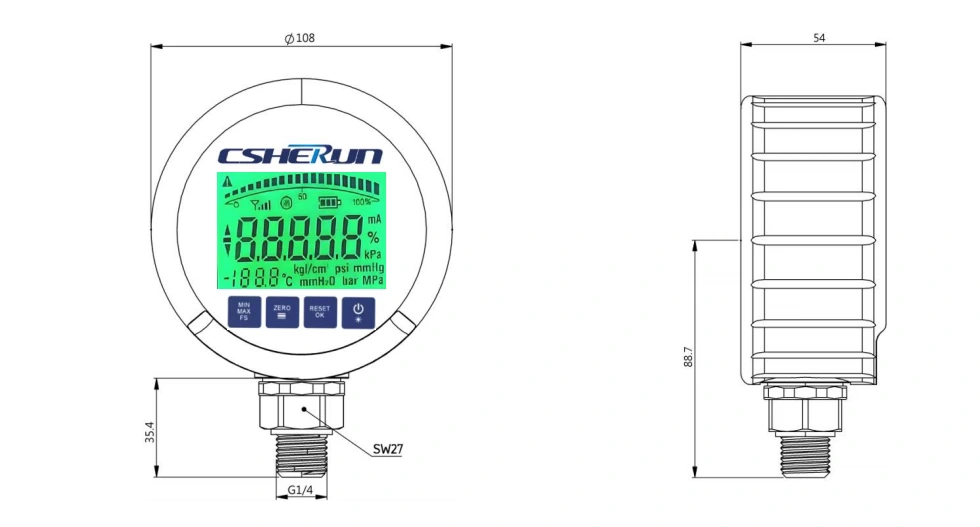

Dimension in mm

Product usage instructions
