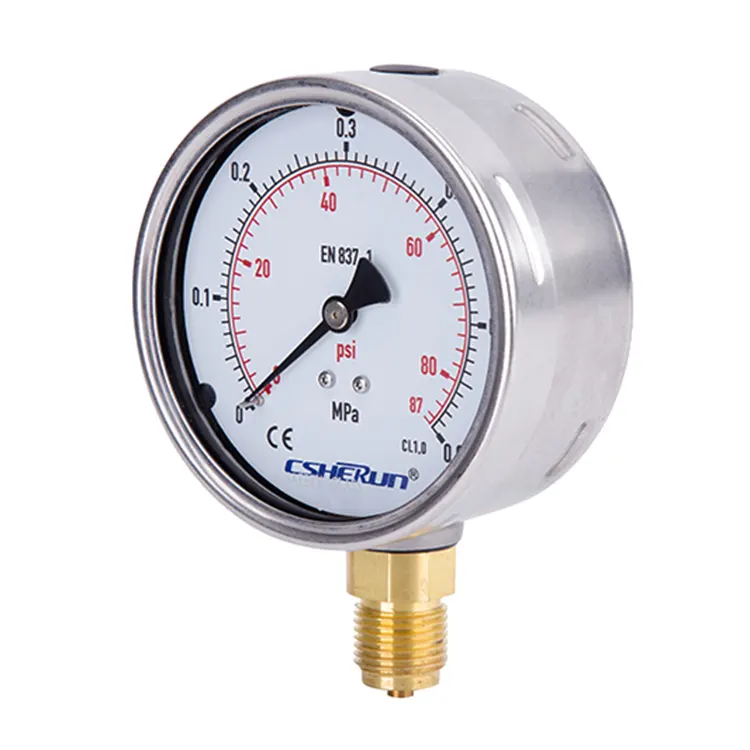

The sophisticated Liquid Filling Pressure Gauge, produced in China, is primarily employed for measuring gas pressure, with the capability to assess micro-pressure and provide a degree of over-pressure protection. Crafted from copper alloy and encased in robust stainless steel, this gauge ensures both precision and durability.
The CSHERUN Liquid Filling Pressure Gauge, manufactured in China, is designed for use with gaseous and liquid media that are not highly viscous, do not crystallize, and do not cause corrosion to copper alloys. When measuring gas or vapour, it is crucial to adhere to the "Selection Criteria as pre EN 837-2" table to ensure compatibility and accuracy.
For added convenience, CSHERUN offers the option to customize the dial markings according to your specific needs. Upon request, we can also print your company logo on the dial, providing a personalized touch to your Liquid Filling Pressure Gauge.
● Vibration and shock resistant
● Suitable for heavy vibrations and high, dynamic pressure loads
● Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts
● Longer service life due to less wear and corrosion protection of the measuring system
● Hydraulics
● Compressors, shipbuilding
● Medical engineering
● Reliable and cost-effective
● Different customized versions available
● For gaseous and liquid media which are not highly viscous, do not crystallize and do not attack copper alloys.
● ！For measuring gas or vapour, these gauges must be used in accordance with the table “ Selection Criteria as pre EN 837-2”.
|
Maximum scale value of pressure gauge (bar) |
≤25 |
＜25 to ≤600 |
＜600 to ≤1000 |
|
Number of pressure cycles |
120 000 |
100 000 |
30 000 |
|
Design |
EN837-1 |
|
|
Nominal size in mm |
63，100, 160 |
|
|
Accuracy Class (according to EN837-1) |
63mm ：Cl1.6 100, 160mm : Cl1.0 |
|
|
Measuring ranges
|
-1 … 0bar to -1 … 15bar 0 … 0.6bar to 0 … 1000bar |
|
|
Application area
|
Steady: ≤600bar full scale value ＞600bar 3/4 X full scale value
Dynamic load: ≤600bar 0.9 X full scale value ＞600bar 2/3 X full scale value
Short time: ≤600bar 1.3 X full scale value ＞600bar full scale value |
|
|
Operating temperature range |
Ambient: -20 …. +60℃ Medium: +60℃ maximum |
|
|
Temperature performance |
When the temperature of the measuring system deviates from the reference temperature (+20℃): max.±0.4%/10k of the span |
|
|
Degree of protection |
IP65 (EN 60529) |
|
|
Process connection |
Copper alloy G1/2B – spanner size SW22 |
|
Connection location
|
Bottom mount Lower back mount Centre back mount(only for NS63) |
|
Pressure element |
Copper alloy ≤60bar “C” type tube ＞60bar helical tube |
|
Movement |
Copper alloy |
|
Dial
|
Aluminium, white, Dial marking black and red |
|
Pointer |
Aluminium, black |
|
Case |
Stainless Steel 304 with blow-out |
|
Bayonet type bezel |
Stainless steel 304 |
|
Window |
Safety glass |
|
Filling liquid |
Glycerine(99.5%), Silicone oil(option) |
■ Other process connection, the connection thread can be PT, NPT, BSPT etc.
■ Special scales
■ Panel mounting bezel
■ 3-hole fixing, panel mounting bezel
■ Other special versions
