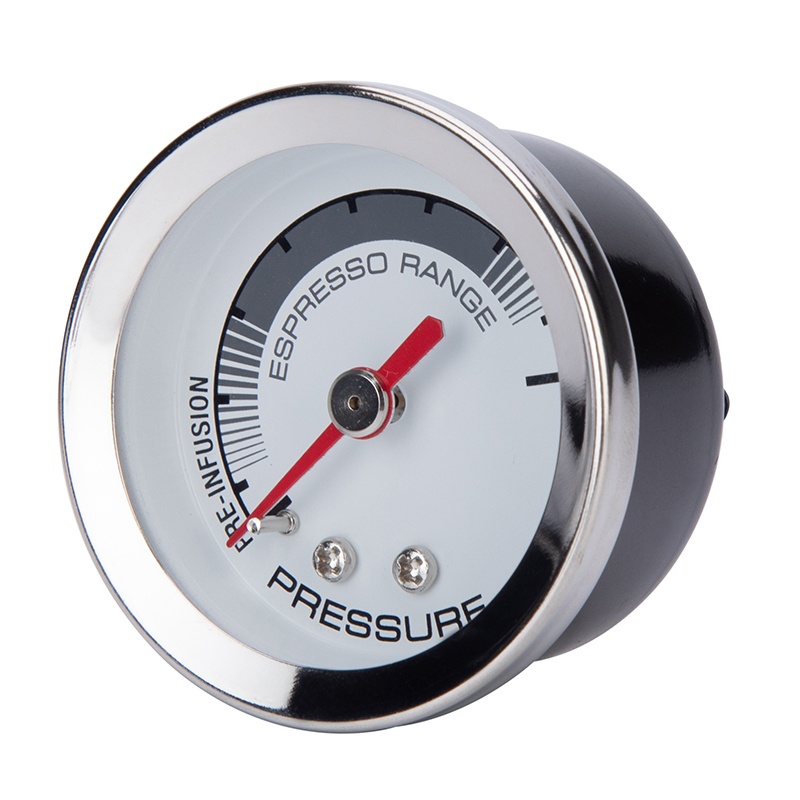

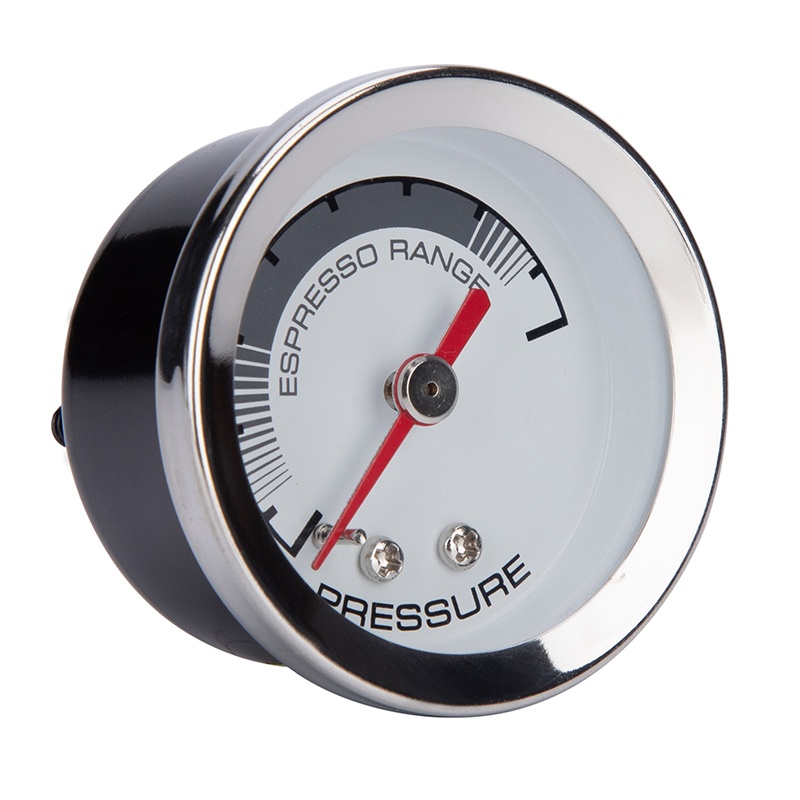

Bourdon tube pressure gauge
Coffee machine pressure gauge
Models TS02C.050.050
Applications
■ For breville esb870 coffee machine
Description
Design
EN837-1
Nominal size in mm
50
Accuracy class
2.5
Scale ranges
Special design
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
Standard version

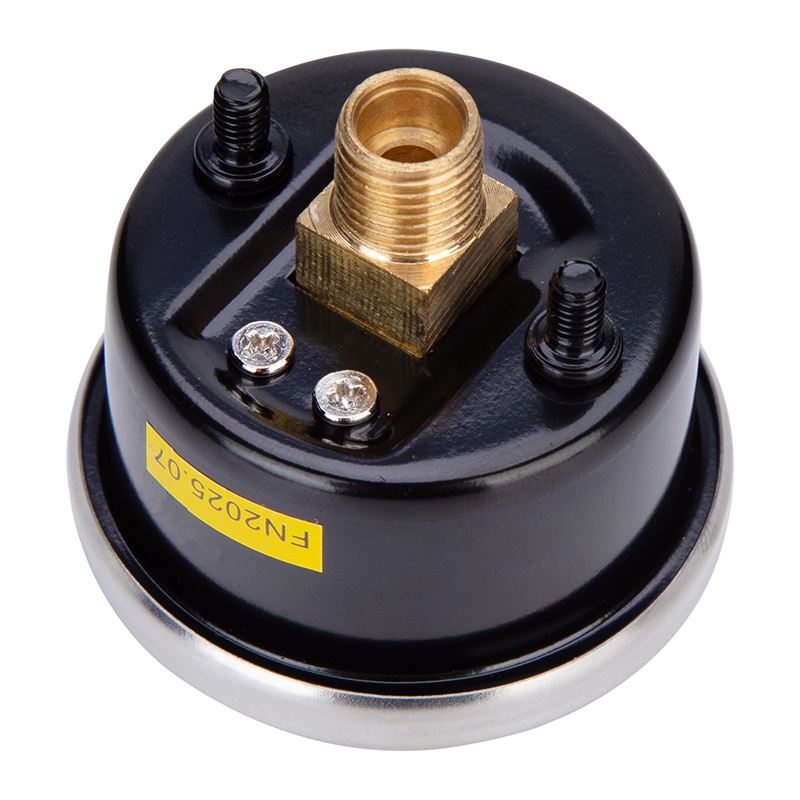

Process connection
Copper alloy
G 1/4 B (male), 14 mm flats

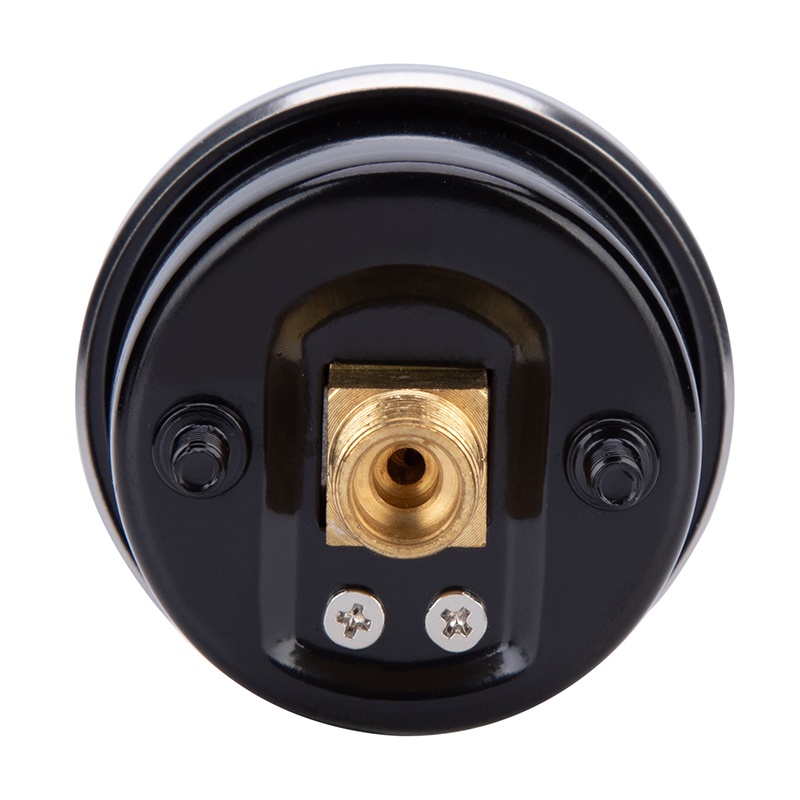

Connection location
Centre back mount
Pressure element
Copper alloy , C-type or helical type
Movement
Copper alloy
Dial
Aluminium, white, black lettering
Pointer
Aluminium, black
Case
Steel
Window
PC
