At CSHERUN, we're dedicated to providing top-quality pressure gauges that meet the diverse needs of our customers. Our Stainless Steel Pressure Gauge Movement are designed for nominal sizes of 100, 150, and 160mm applications, and they offer a wide measuring range from -1...0 bar to 0...8000 bar.
These gauges are built to the specifications of EN837-1, ensuring that they meet the highest standards of accuracy and reliability. With accuracy classes of 0.5 and 1.0 available, you can trust that our gauges will provide precise measurements, even in the most demanding applications.
Our Stainless Steel Pressure Gauge Movement are perfect for a wide range of industries, including automotive, aerospace, oil and gas, and more. Whether you need to monitor pressure levels in a hydraulic system, high purity assembly system, a pneumatic control circuit, or any other critical application, our gauges are designed to deliver exceptional performance.
With their robust construction and precision engineering, our Stainless Steel Pressure Gauge Movement are built to withstand the rigors of daily use while providing accurate and reliable measurements. Trust us for all your pressure gauge needs, and experience the difference that precision engineering can make in your operations.
Contact us today to learn more about our Standard Movement Pressure Gauges and how they can help you achieve better results in your industrial applications

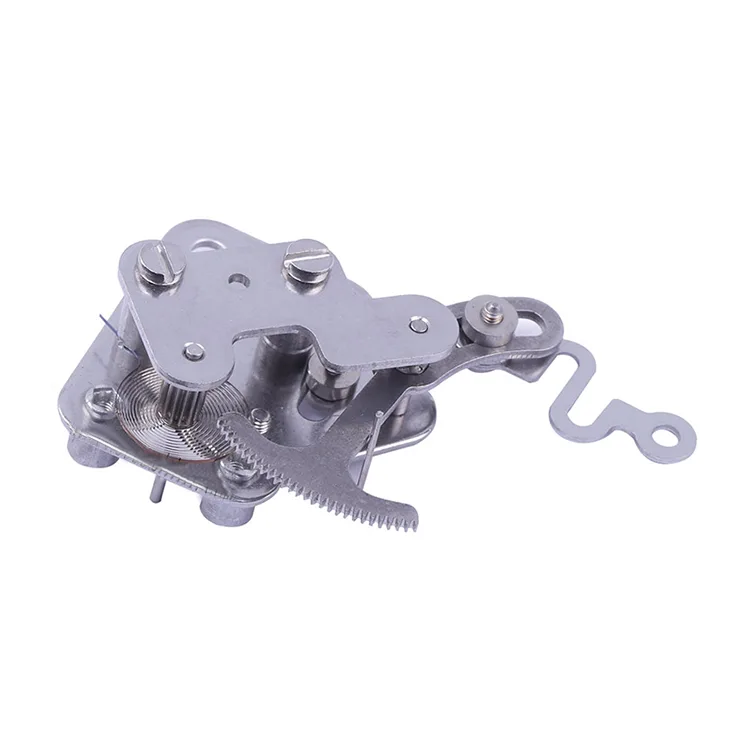

100mm SS pressure gauge movement
Model400220
● For NS100, NS115, NS150, NS160 pressure gauge
● Suitable for various complex environments such as corrosive, vibrating, and toxic conditions.
● Air, water, hydraulic pressure gauge application
● Measuring range -1...0 bar to 0...8000bar
● 625 different types pressure gauge movement
● Design per EN837-1
● Accuracy class 0.5, 1.0
● High-precision components，fully automated assembly
● Measuring is smooth, the pointer trend is stable
● Small gear backlash prevents skipped stitches and non-zeroing phenomenon.
● Various hairspring torques can be used for different pressure measurements.
● Multiple mounting hole diameters
● Multiple linkage designs
| Design | EN837-1 |
| Transmission ratio | 11.2, 14.4 |
| Distance between install holes in mm | 15 |
| Distance between center in mm | 27 |
| Length of shaft extension in mm | 9 |
| Diameter of install holes in mm | 4 |
| Hairspring torque | ● 25g |
| ● 50g | |
| ● 85g | |
| ● 120g | |
| ● 160g | |
| ● 200g | |
| ● 250g | |
| ● 300g | |
| ● 350g | |
| Connection rod | ● Straight connection rod |
| ● S connection rod | |
| Material | ● Brass |
| ● Stainless Steel |
