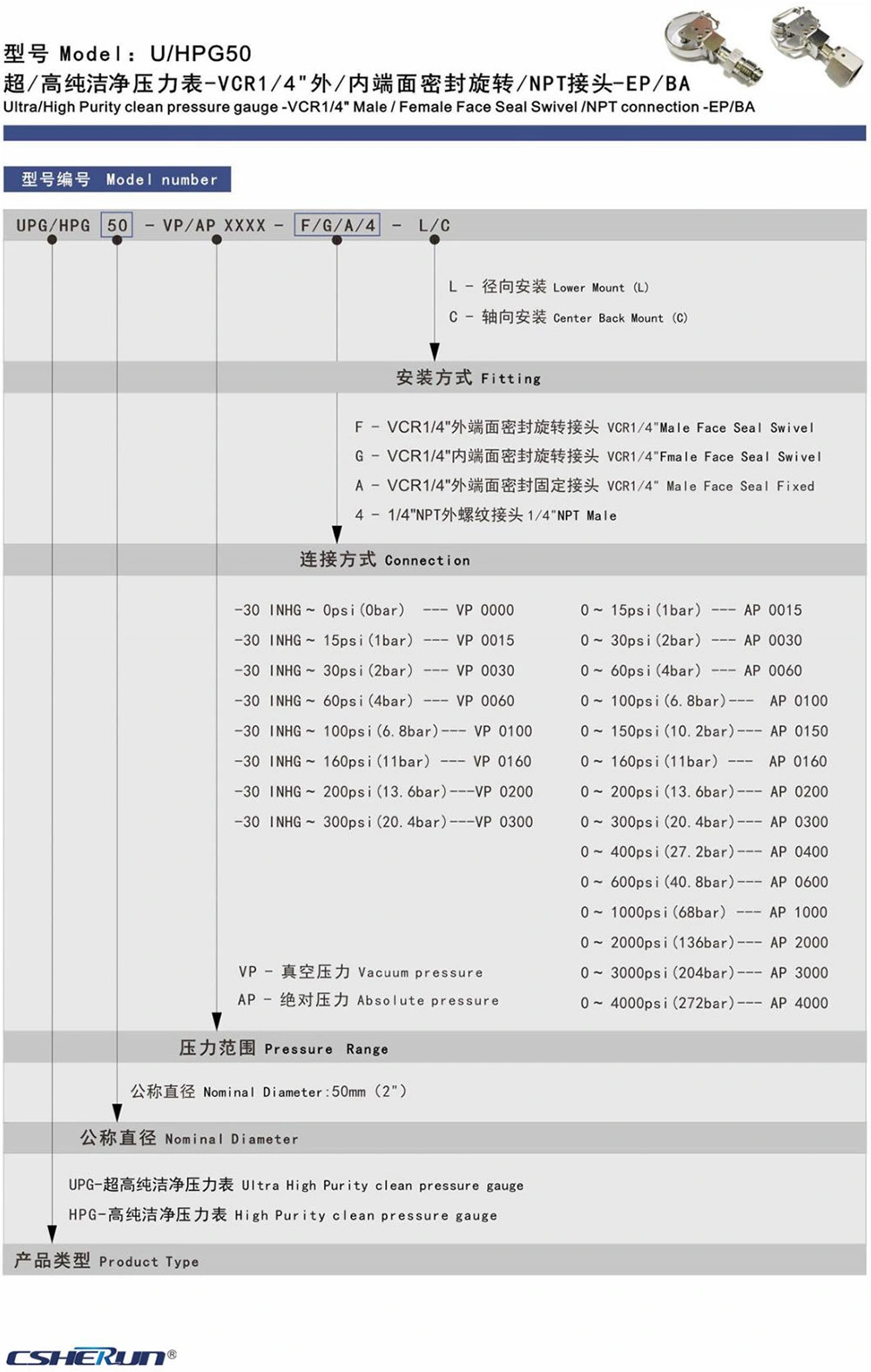

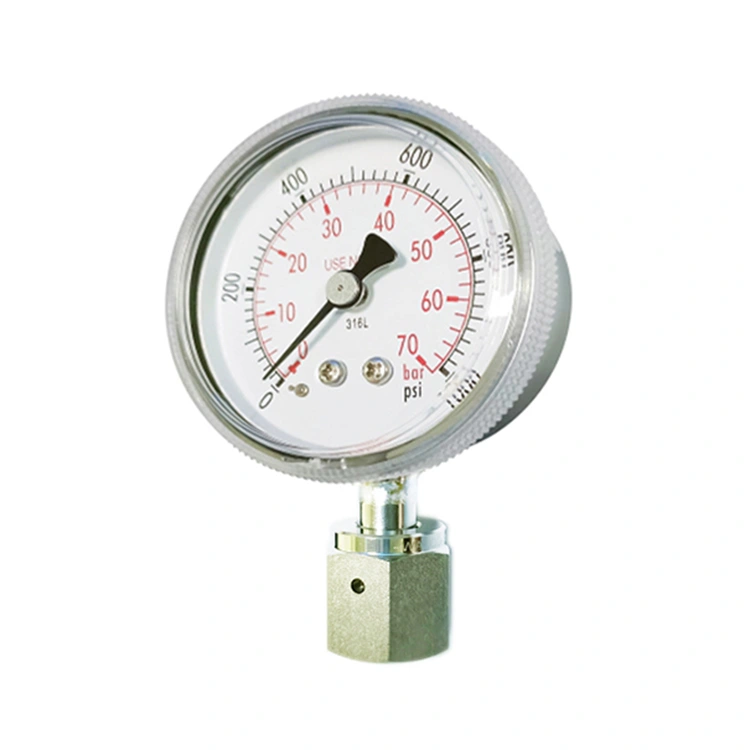

VCR 14 Female Face Seal Swivel Coupled with our Ultra-high Purity Pressure Gauge (UPG, H-Pressure), model VCR1/4, you gain unparalleled precision and reliability in monitoring your system's pressure levels. The UPG50-VP/AP-G-L/C series offers a versatile range of options to suit your specific needs. Choose between a vented (VP) or absolute (AP) pressure gauge, with a glycerin-filled (G) option for added vibration resistance and a luer lock (L) connection for easy installation and disconnection. Additionally, select from materials compatible with ultra-high purity environments, denoted by (C).
Together, theVCR 14 Female Face Seal Swiveland UPG50-VP/AP-G-L/C pressure gauge form a robust and reliable solution for industries requiring the utmost in purity and precision, such as semiconductor manufacturing, pharmaceutical production, and beyond. Trust our expertise in ultra-high purity systems to deliver a solution that meets your needs with quality, innovation, and reliability.
●All parts are treated with ultrasonic purified water
●Welding is performed in an oxygen-free vacuum chamber protected by high purity argon gas
●The product has passed strict pressure and air tightness testing, up to 1X10-9Pa·m³/s
●Suitable for the high purity gas distribution system used in a semiconductor, electronic,medical,biotechnology and pharmaceutical industry
|
Nominal Diameter (mm) |
50 |
|
Pressure Range |
Item No：66007--- 0-1000~4000psi |
|
Displacement (mm) |
1.1~1.4 |
|
Accuracy (%) |
ASME 40.100-2013 GradeA |
|
Gas path sur face finish |
< 10 Ra µin (Internal) |
|
Cleanliness |
IEST-STD-CC1246 Level 100 R1 |
|
Load Capacity |
Stable: 75% FS |
|
Working Environment |
Ambient Temperature: -40°C ~65°C |
|
Temperature Influence |
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale |
|
Connection |
VCR1/4" Fmale Face Seal Swivel |
|
Fitting |
Lower Mount (L) |
|
Measuring Element |
Capillary tube : AISI 316L VM SS |
|
Dial |
Aluminum |
|
Pointer |
Aluminum |
|
Case |
304 SS (electrolytic polishing) |
|
Window |
Polycarbonate(PC) |
