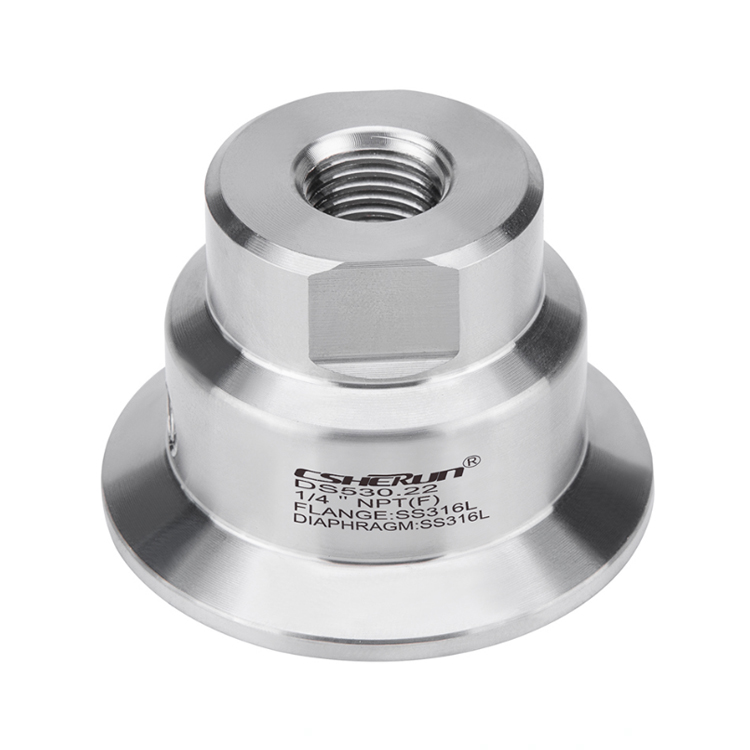

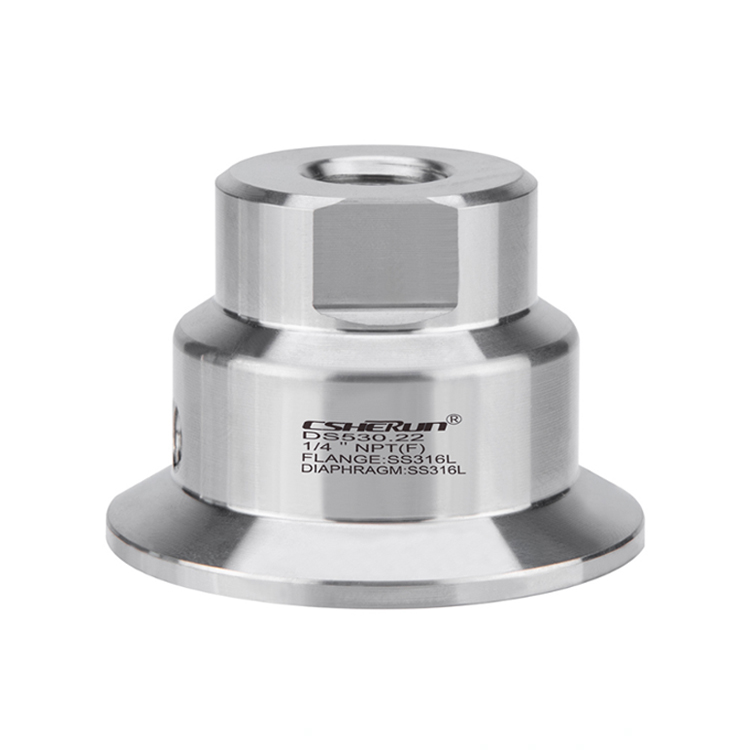

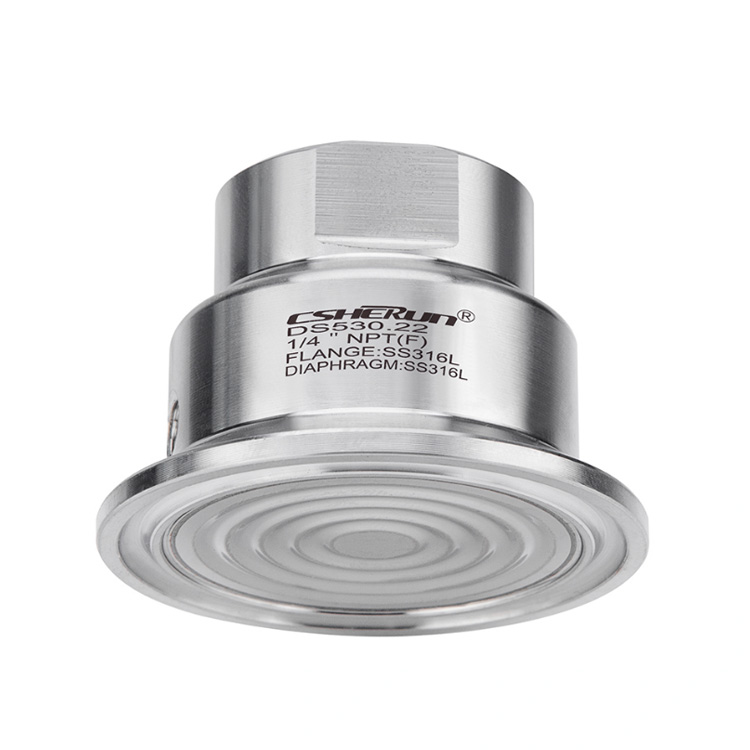

Introducing the Diaphragm Seal with Sterile Connection - The Ultimate Choice for Pressure Measurement in Sterile Environments,Discover the precision and reliability of the Diaphragm Seal with Sterile Connection, designed specifically for pressure measurement in sterile and critical applications. This innovative product features a clamp connection that ensures a secure and leak-tight fit, providing a sterile barrier between the process media and the pressure measurement system.
The Diaphragm Seal With Sterile Connectionis constructed from high-quality materials that are compatible with a wide range of media and temperatures. Its clamp connection design allows for easy installation and integration into your existing process systems, ensuring minimal disruption to your operations.
The sterile diaphragm of this seal provides a critical barrier that prevents contamination and cross-contamination of the process media. This is particularly important in applications such as biopharmaceutical manufacturing, medical device production, and food and beverage processing, where sterile conditions are crucial.
As a trusted manufacturer of Diaphragm Seal With Sterile Connection, we are committed to providing high-quality products and exceptional customer service. Our Diaphragm Seal with Sterile Connection is designed and manufactured to meet the stringent standards of the sterile processing industry, ensuring reliability and accuracy in your pressure measurement needs.
Whether you're in the biopharmaceutical, medical device, food and beverage, or other critical industries, the Diaphragm Seal with Sterile Connectionis your go-to solution for pressure measurement in sterile environments. Contact us today to learn more about our products and services.
Applications
●Sanitary applications
●Gases, compressed air, vapour; liquid,
pasty, powdery and crystallising media
●Ultra-pure steam systems
●Mounting to pipelines and vessels
●Pressure/vacuum monitoring, e.g. vacuum
conveyors,pump monitoring
Special features
●Quick cleaning, without residue
●Clamp connection easy to open for
cleaning and seal replacement
●Suitable for SIP and CIP
●Compliant per ASME BPE

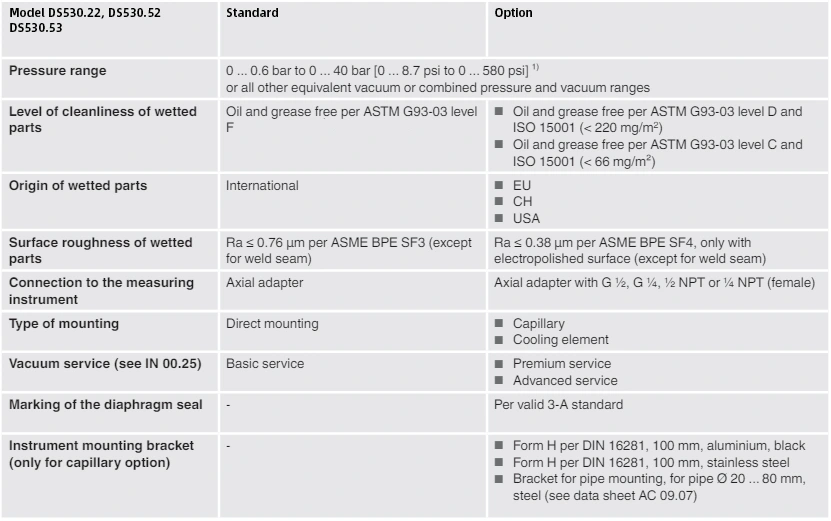

Specification

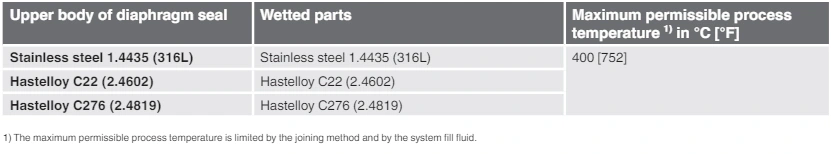

Material combinations
Further material combinations for special process temperatures on request

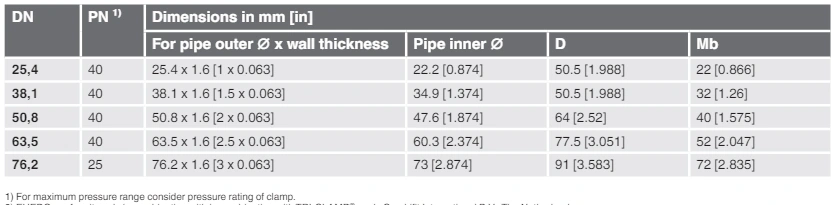

Model DS530.22

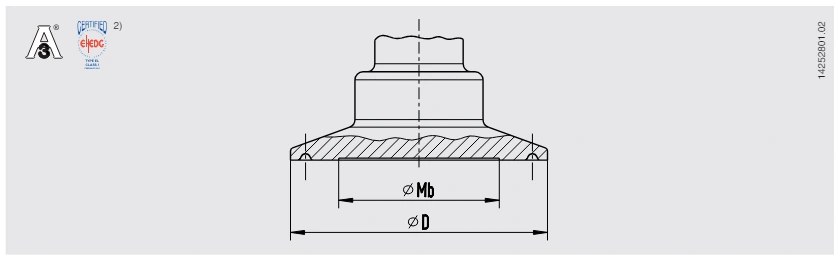

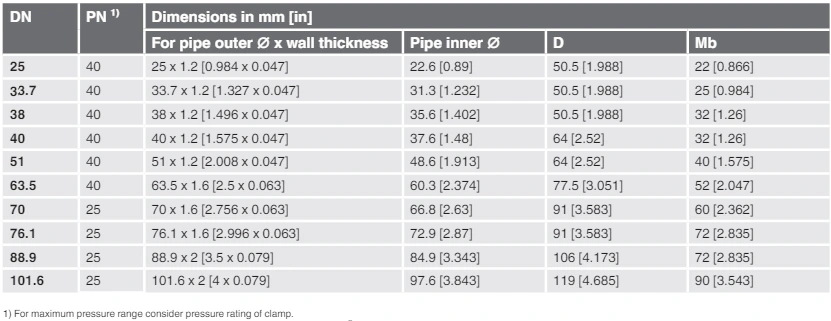

Process connection: Clamp connection per DIN 32676
Pipe standard per DIN 11866 row B and ISO 1127 row 1

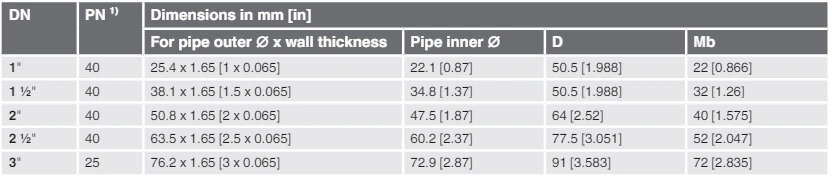

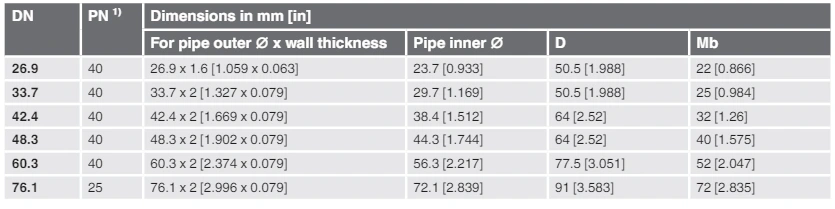

Process connection: Clamp connection per DIN 32676
Pipe standard per DIN 11866 row C or ASME BPE

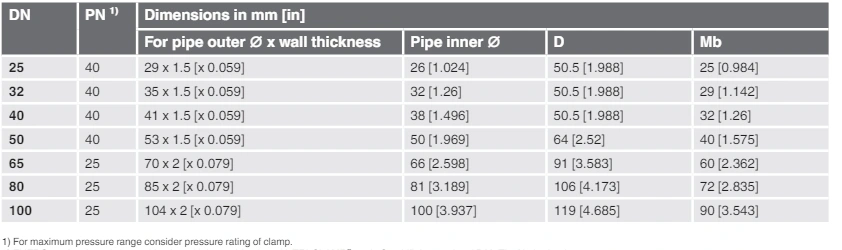

Process connection: Clamp connection per BS4825 Part 3
Pipe standard per BS4825 part 3 and O.D. tube
Model DS530.52

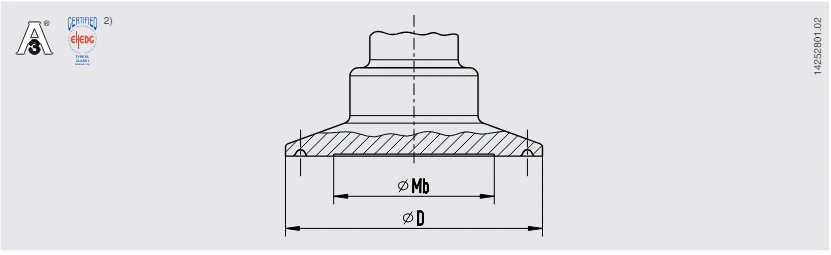

Process connection: Clamp connection per DIN 32676
Pipe standard per DIN 11866 row A and DIN 11850 row 2
Further dimensions and higher nominal pressures on request
Model DS530.53
Process connection: Clamp connection per ISO 2852
Pipe standard per ISO 2037 and BS 4825 part 1
Further dimensions and higher nominal pressures on request
Diaphragm seal:
Diaphragm seal model / Process connection (type of process connection, pipe standard, pipe dimension) / Material (upper body, diaphragm) / Surface roughness of wetted parts / Sealing / Connection to the measuring instrument / Level of cleanliness of wetted parts / Origin of wetted parts / Certificates
Diaphragm seal system:
Diaphragm seal model / Process connection (type of process connection, pipe standard, pipe dimension) / Material (upper body, diaphragm) / Surface roughness of wetted parts / Sealing / Pressure measuring instrument model (per data sheet) / Mounting (direct mounting, cooling element, capillary) / min. and max. process temperature / min. and max. ambient temperature / Vacuum service / System fill fluid / Certificates / Height difference / Level of cleanliness of wetted parts / Origin of wetted parts / Instrument mounting bracket
