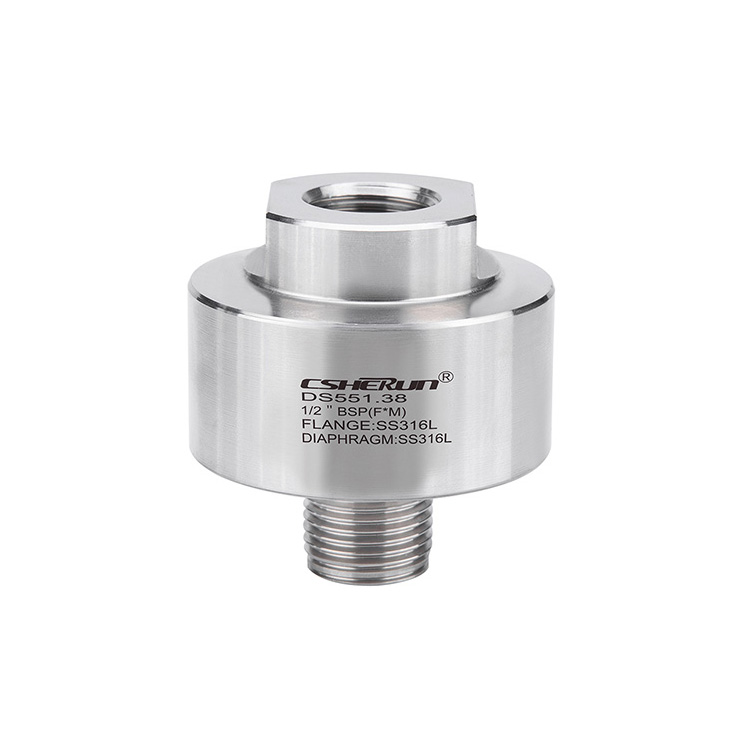

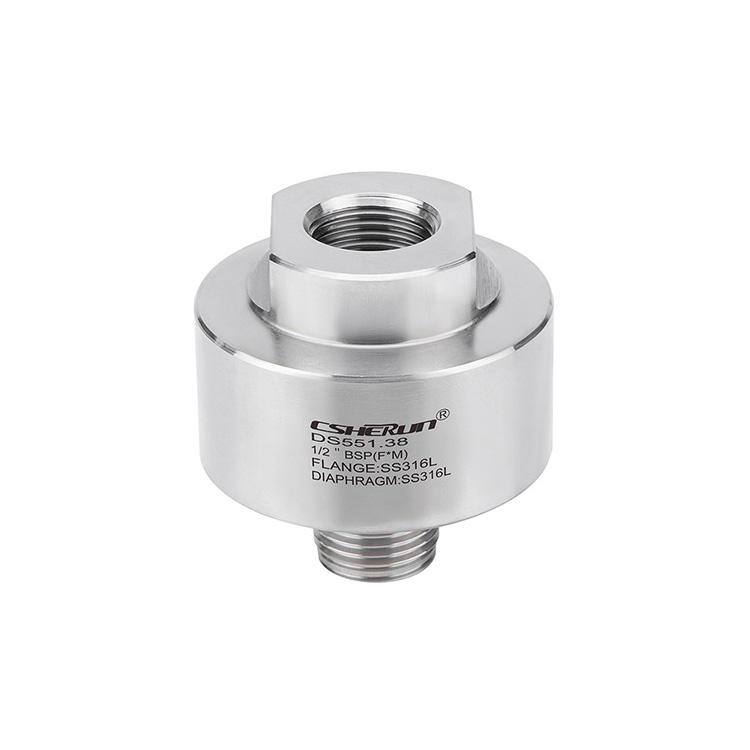

● Standard applications in process industry
● Suitable for corrosive, contaminated or heterogeneous pressure media
● Design with internal diaphragm, upper and lower housing welded
● No sealing
● Excellent cost-performance ratio
|
Pressure rating |
50℃ pressure max 110bar |
|
|
Pressure range |
0 ... 0.6MPa to 0 ... 9MPa |
|
|
Upper housing (instrument connection) |
Material stainless steel 316 L, G ½ female |
|
| Diaphragm |
Material stainless steel 316 L, welded with upper body |
|
|
Lower housing (process connection) |
Material stainless steel 316 L, G ½ B male, |
|
|
Pressure gauge temperature range |
Process -10 ... +150℃ |
|
|
Fill fluid |
KN2 Silicon oil |
|
Recommended possibility of combination diaphragm seal Model DS551.38 with a pressure gauge with bourdon tube model S.SW06.010.100/S.SW06.030.100
|

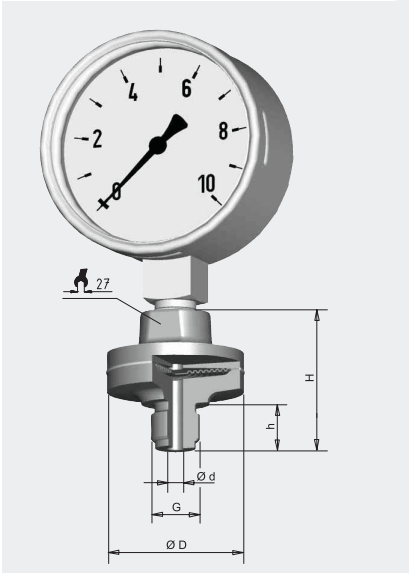

Process connection G |
Dimensions in mm |
Weight in Kg |
|||
|
|
D |
d |
H |
h |
|
|
G1/2B |
59 |
7 |
60.5 |
20 |
0.48 |
|
1/2NPT |
59 |
7 |
59.5 |
19 |
0.48 |
Model / Process connection / Fill fluid / Pressure gauge model / Pressure range / Process conditions
