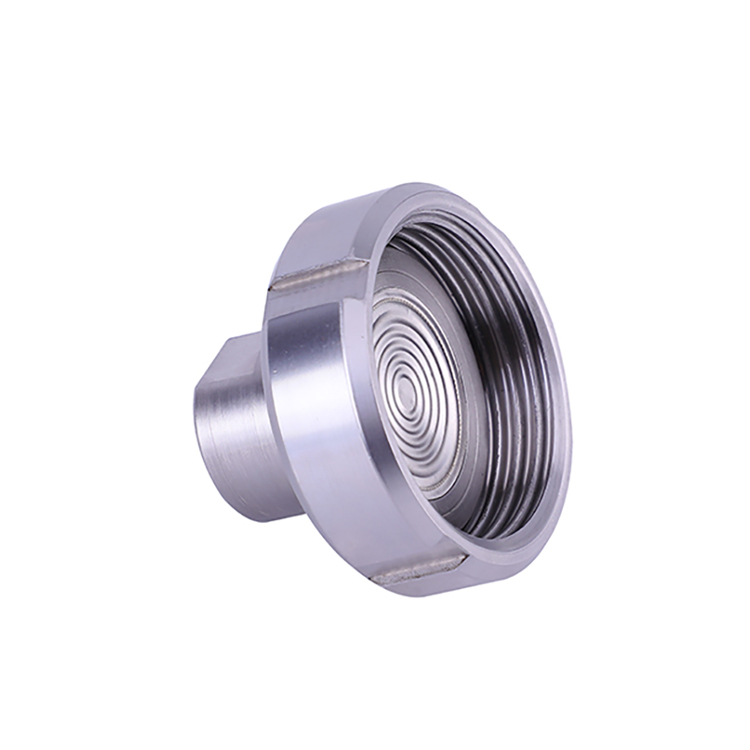

Diaphragm seal with sterile connection With clamp connection(milk thread fitting)

Applications

● Food and beverage production

● For dairies, dairy products

● Breweries

● Filling systems

● Filtration, separation, pasteurisation

Special features

● Quick mounting and dismounting

● Quick cleaning of measuring point, without residue

● Suitable for cleaning out of place (COP)

● 3-A compliant

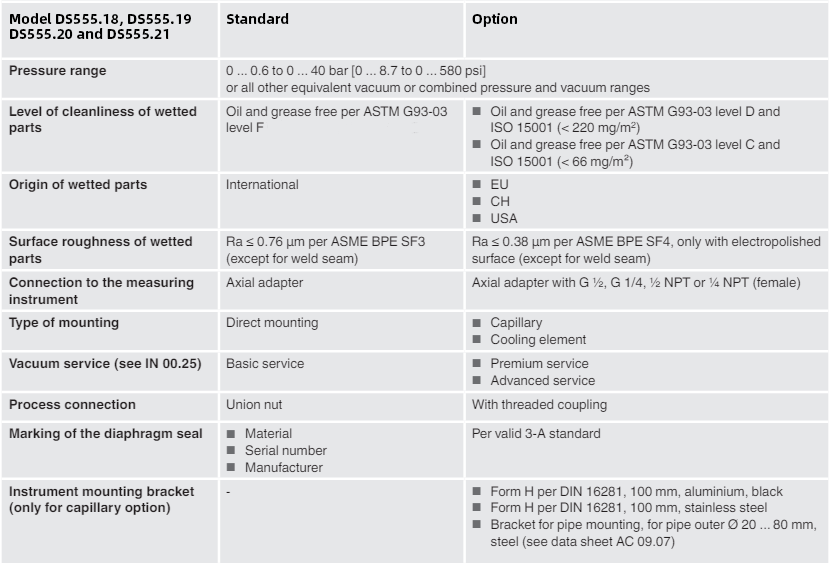

Specification

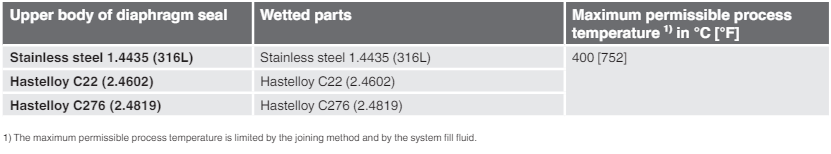

Material combinations

Further material combinations for special process temperatures on request

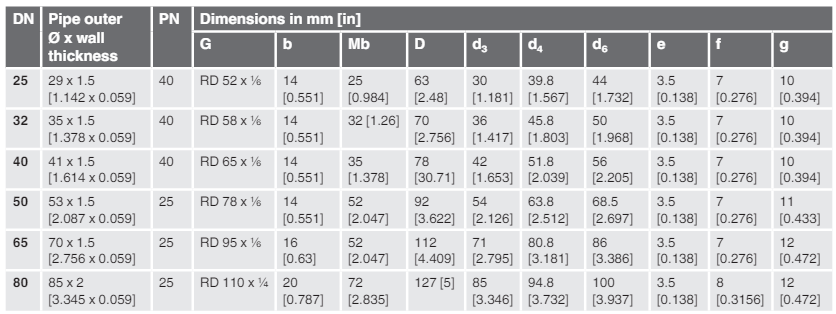

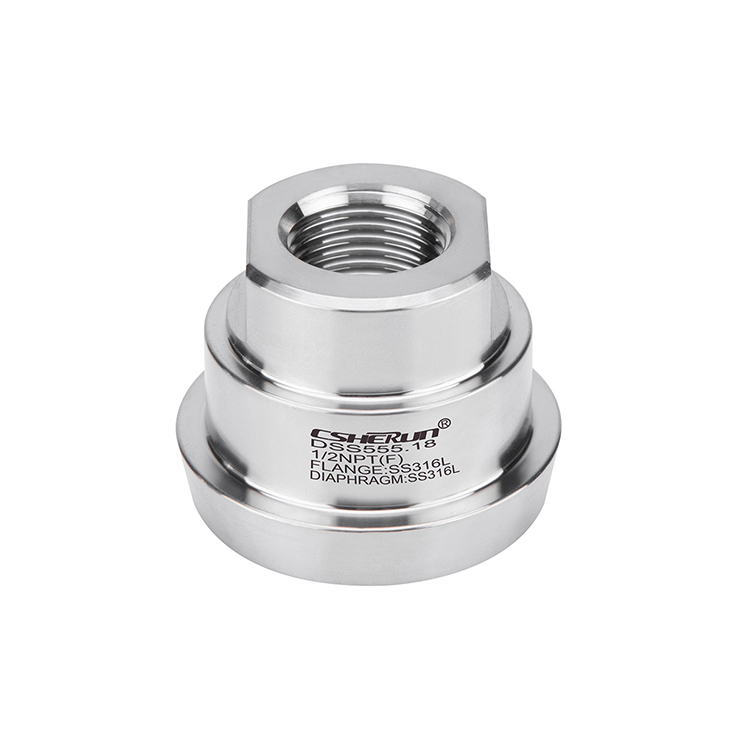

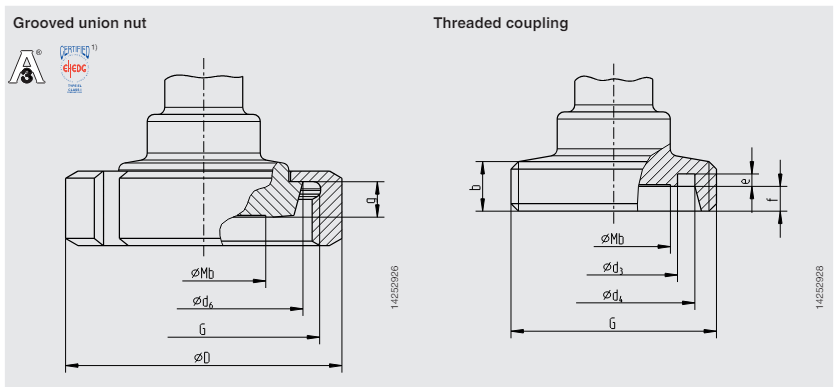

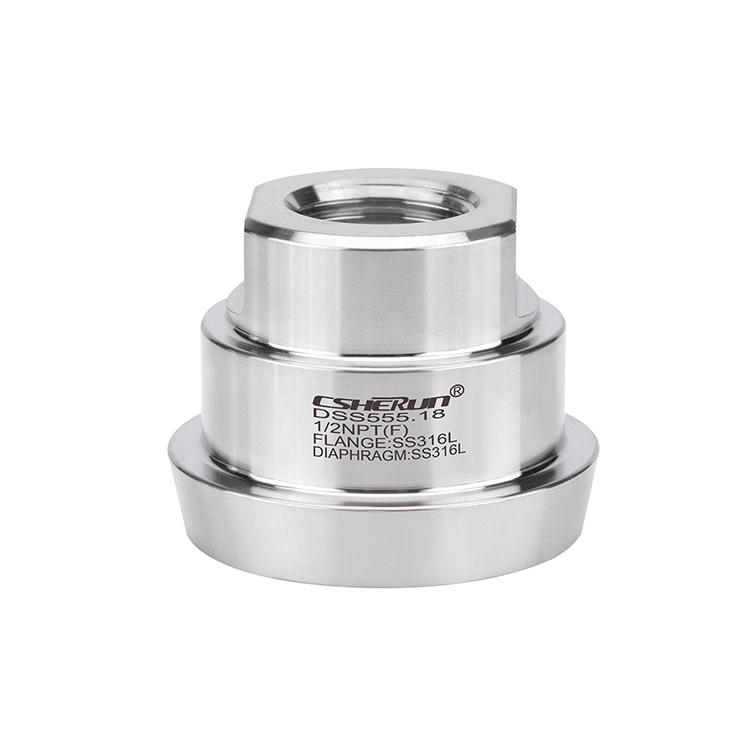

Model DS555.18, threaded connection per DIN 11851

Pipe standard: Pipes per DIN 11850 row 2

Further dimensions and higher nominal pressures on request

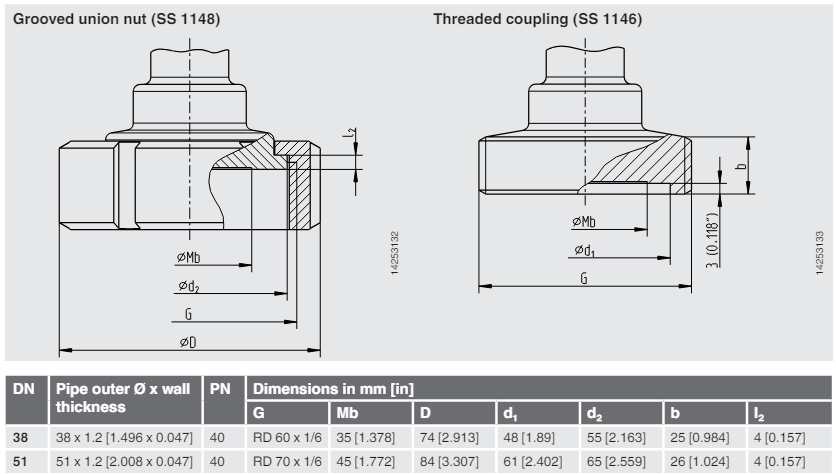

Model DS555.19, threaded connection Svensk Standard

Pipe standard: Pipes per ISO 1127 row 2 or ISO 2037/1992

Further dimensions and higher nominal pressures on request

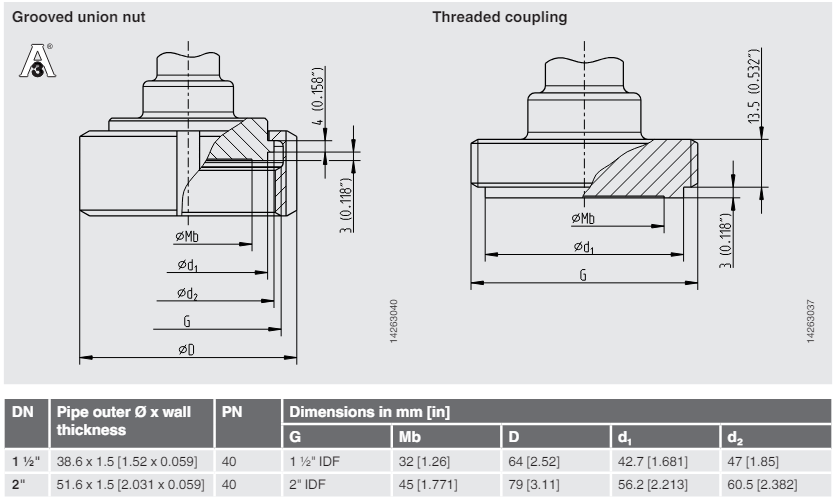

Model DS555.20, threaded connection IDF standard (ISO/DIS 2853 and BS 4825 part 4)

Pipe standard: Pipes per ISO 1127 row 2 or ISO 2037/1992

Further dimensions and higher nominal pressures on request

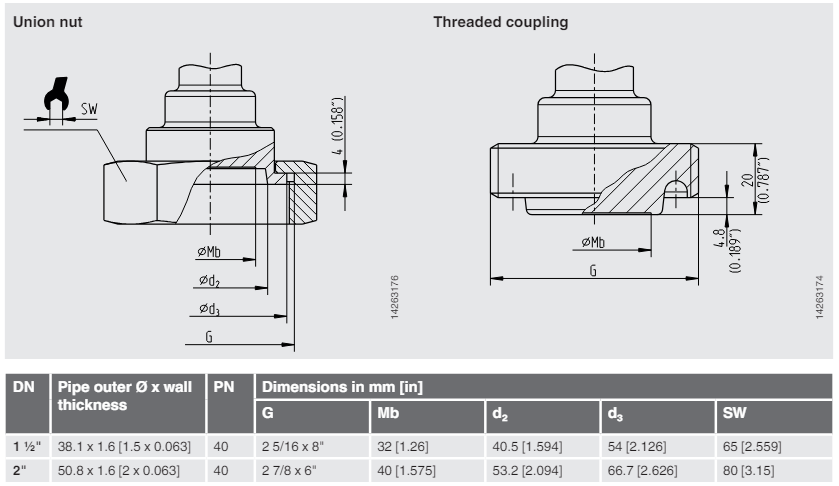

Model DS555.21, threaded connection APV-RJT standard (BS 4825 part 5)

Pipe standard: Pipes per BS 4825 part 1 or O.D. tube

Further dimensions and higher nominal pressures on request
