● Oil and gas industry
● Maintenance and service facilities
● Calibration service companies and service industry
● Test bench / gauge repair facilities
● Leak test
● Gauge pressure, absolute pressure or compound pressure
● Measuring ranges up to 600MPa
● 0.05%, 0.1%, 0.2%FS accuracy
● Full scale total error band and temperature from -40°C to 80°C
● Bluetooth communication
● Communication with CSHERUN’s APP Link Mobile App
● RS232 or RS485 output
● Optional with data logger function 1,000,000 data sets recording
| Case Size | 100mm (4'') |
| Range | -100....10kPa ~160MPa |
| Supply | 2 x 1.5 V AA batteries |
| Output | RS485、RS232 (Option) |
| Pressure Connection | Lower connection G1/4A typical, (or custom) |
| Function | Page 2 |
| Approval | CE, SIL3, ATEX |
| Accuracy | 0.05%FS, 0.1%FS, 0.2%FS |
| Long term stability | ≤0.1%FS/year |
| Operation temperature | -20°C～80°C |
| EMC | IEC 61326 |
| Vibration | IEC 60068-2-6/ 10…500 Hz, 5 g |
| Shock | IEC 60068-2-29/25 g, 11 ms |
| Enclosure Rating | IP67 |
1）Additional request. Contact Factory

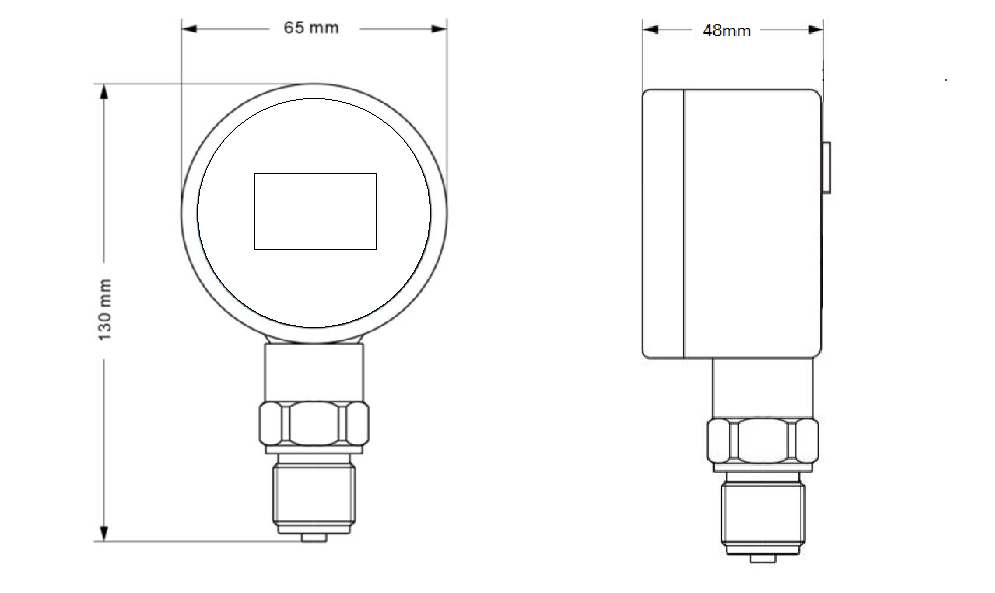

Unit: mm
