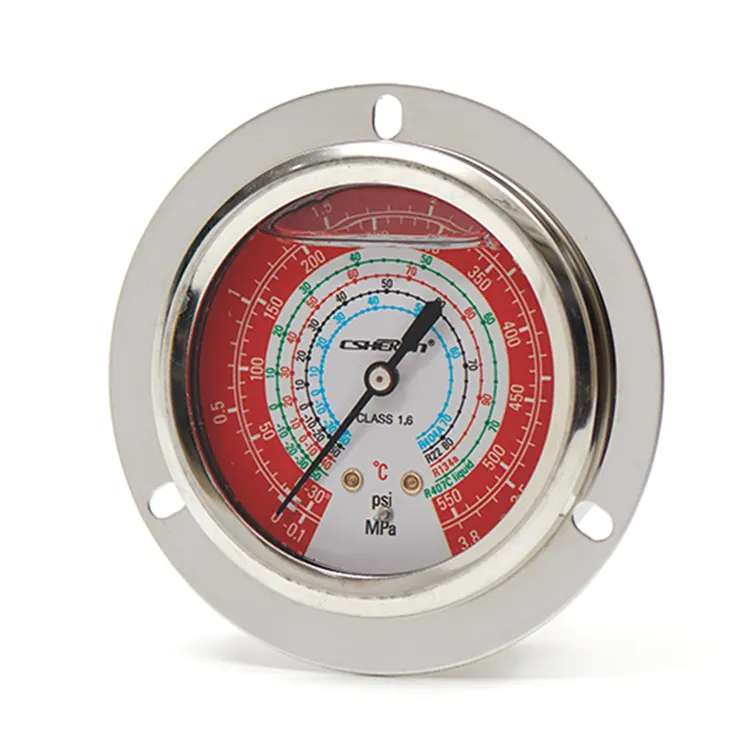

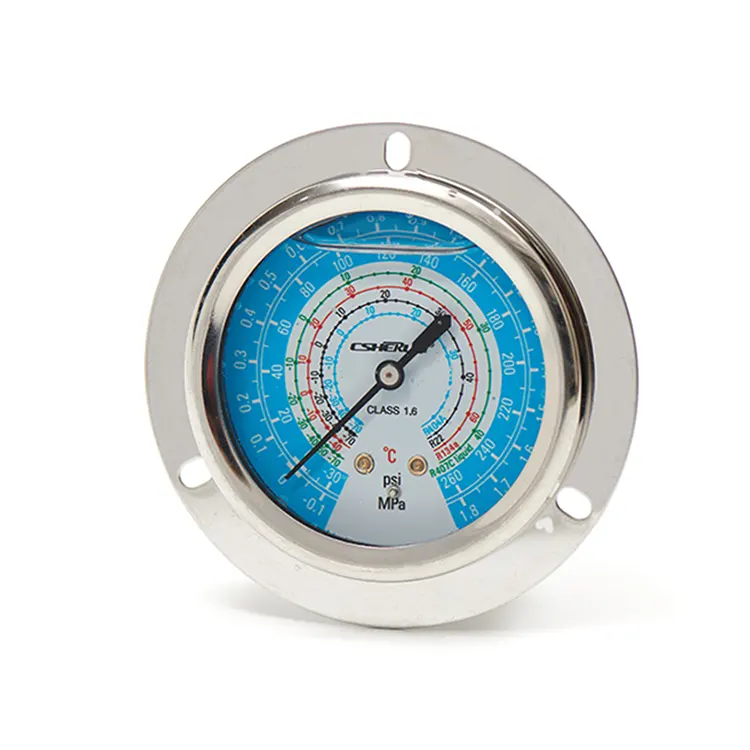

You can confidently purchase the Refrigerant Gauge from our factory, where we guarantee excellent after-sale service and timely delivery. The state-of-the-art Refrigerant Gauge, made in China, is a versatile instrument for gas pressure measurement, capable of assessing micro-pressure and providing a degree of over-pressure protection. Crafted from copper alloy and enclosed in durable stainless steel, it ensures robustness and precision.
The Refrigerant Gauge from CSHERUN Manufacturers in China is designed for dual functionality, allowing simultaneous measurement of both pressure and temperature of steam in refrigeration engineering applications. For accurate measurement of gases or vapors, these gauges must be used according to the "Selection Criteria as per EN 837-2" table to ensure compatibility and reliability. The CSHERUN Refrigerant Gauge, with its advanced features and robust construction, exemplifies China's manufacturing excellence, providing precision and reliability to professionals in the refrigeration industry.
● Suitable for high vibration and high dynamic loads
● Corrosion resistance protection
● Long service life
● Low wear of measurement system
● Can measure various refrigerants
● Used for simultaneously measuring the pressure and temperature of steam in refrigeration engineering.
● For measuring gas or vapour, these gauges must be used in accordance with the table” Selection Criteria as pre EN 837-2”.
|
Nominal size in mm |
63, 80, 100 |
|
|
Accuracy class |
Cl1.6: 63 , 80 Cl1.0: 100 |
|
|
Scale range |
-1 ... +9bar, -1 ... +12.5bar, -1/+15bar, -1/+24bar, -1 ... +30bar Each has a temperature scale |
|
|
Temperature scale |
Corresponding refrigerant R 134a R 290 R 407A R 404A R744 R717 (NH3) R507 |
|
|
Working ranges
|
■ Pressure: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value
■ Temperature Medium temperature: according to the refrigerant Ambient temperature: -20 ... 60℃ |
|
|
Measuring elements |
Bourdon tube, copper alloy |
|
|
Process connection
|
63 : G1/4 80, 100: G1/2 |
|
Connection location
|

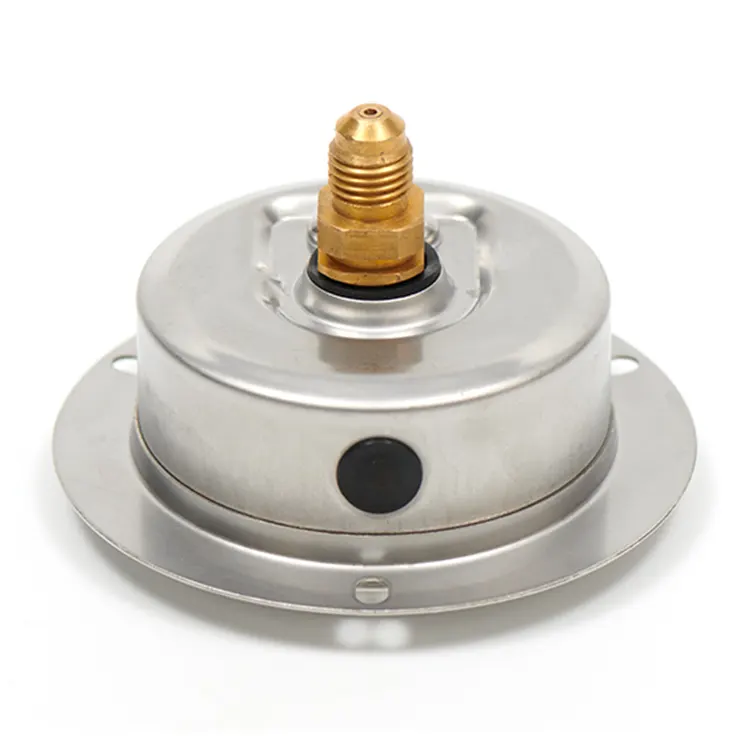

Lower mount (LM) Centre back mount (CBM) |
|
Case |
Stainless steel |
|
Movement |
Copper alloy |
|
Dial |
Aluminium |
|
Pointer |
Aluminium, black |
|
Window |
Plastic |
|
Liquid filling |
Glycerine(99.5%) |
■ Other process connection
■ 7/16 - 20 UNF
■ 3 holes panel mounting
■ Other scale ranges
■ Special scales
