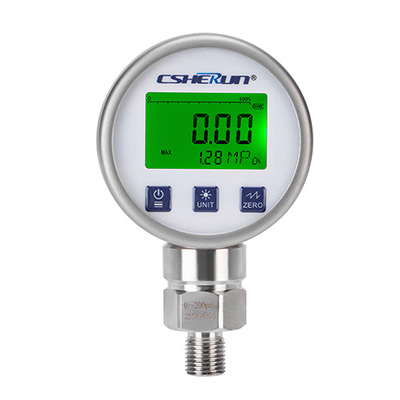

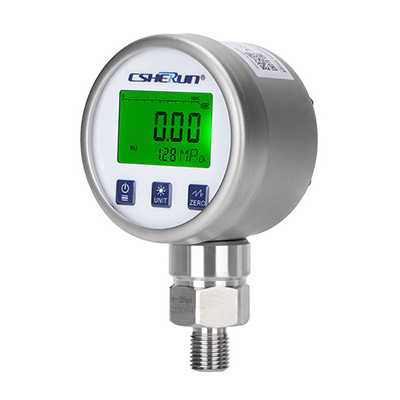

Digital Pressure Gauge TPS.08B

Model:TPS.08B

The TPS.08B series digital pressure gauge delivers real-time pressure readings with high precision, interference resistance, and long-term stability. Featuring an LCD display with percentage display, unit switching, and decimal digit adjustment, it offers user-friendly operation and easy installation. Constructed with 304 stainless steel casings and connectors, this rugged device measures non-corrosive media including gases, liquids, and oils. Ideal for pipeline pressure monitoring, automation equipmentintegration, and pressure vessel measurement applications.

Send Inquiry

Product Description

Applications

● Portable device

● Metrologic instrument

● Indoor pipeline

● Water and wastewater

● Oil & Gas

● Chemical

● Hydraulics and pneumatics

● Specialized OEM equipment

Features

● High stability chip, effectively suppress cut-off frequency interference

● LCD screen with pressure percentage display

● Switch units and decimal places

● One-click reset

● Powered by 2*AAA batteries

Technical Data

Measuring principle	Sensor
Dial diameter	65mm
Range	-100kPa...0~10kPa ~70MPa (maximum 160MPa optional)
Over Pressure	1.5X~2X
Display	5 LCD
Pressure Connection	Lower G1/4A typical, (or custom)
Accuracy	1.0%FS ，0.5%FS，0.2%FS
Long term stability	≤0.3%FS/year
Operation temperature	-10℃～60℃
Power Supply Voltage	2*AAA batteries
EMC	IEC 61326
Enclosure	IP50 (IP54 with protective cover)

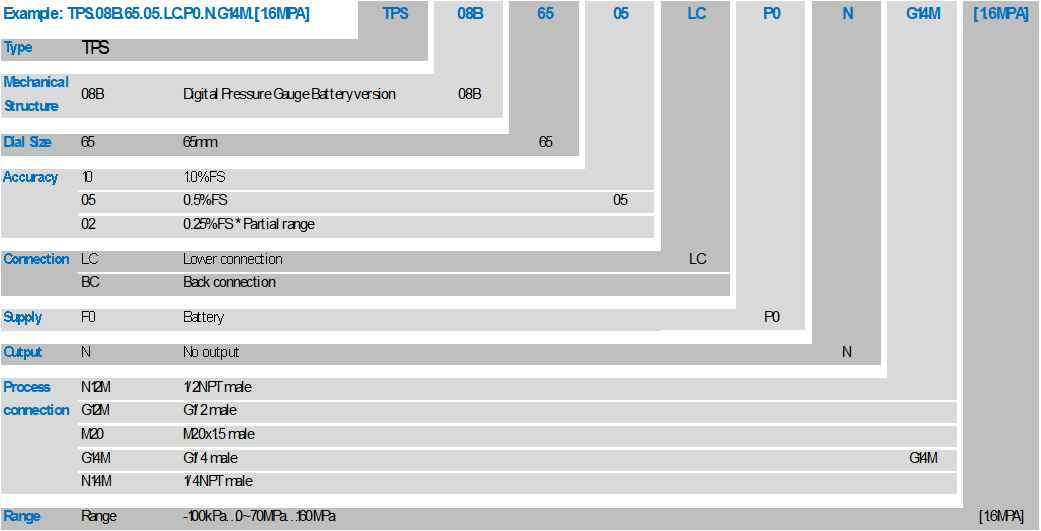

Ordering information

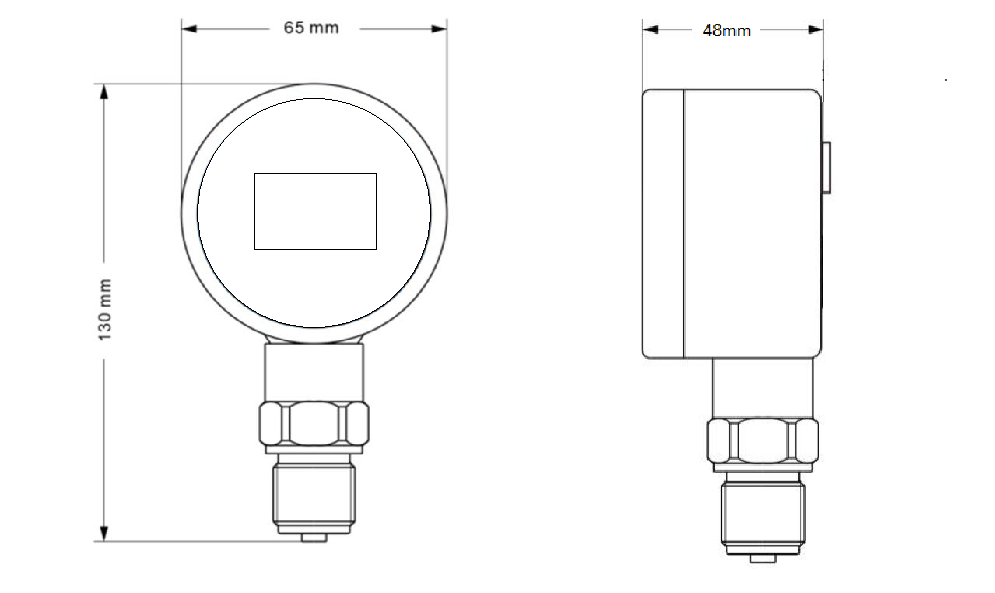

Dimension
