● Portable device
● Metrologic instrument
● Indoor pipeline
● Water and wastewater
● Oil & Gas
● Chemical
● Hydraulics and pneumatics
● Specialized OEM equipment
● Maximum 5-Digit numeric display
● Switch funtion 24 Engineering units
● Equipped with one click reset function
● Range up to -100kPa … 250MPa
| Case Size | 65mm(80mm,100mm option) |
| Range | -0.1 ...0~0.01 ~250MPa (Maximum 250MPa option) |
| Supply | 2 AAA alkaline batteries or 24V |
| Output | 4-20mA, RS485 |
| Pressure Connection | Lower G1/4A typical, (or custom) |
| Accuracy | 0.1%FS，0.5%FS，0.25%FS |
| Long term stability | ≤0.3%FS/year |
| Display | 5-Digit numeric LCD |
| Enclosure Rating | IP54 |
| Approval | CE, SIL, ATEX |
1）Additional request, contact factory

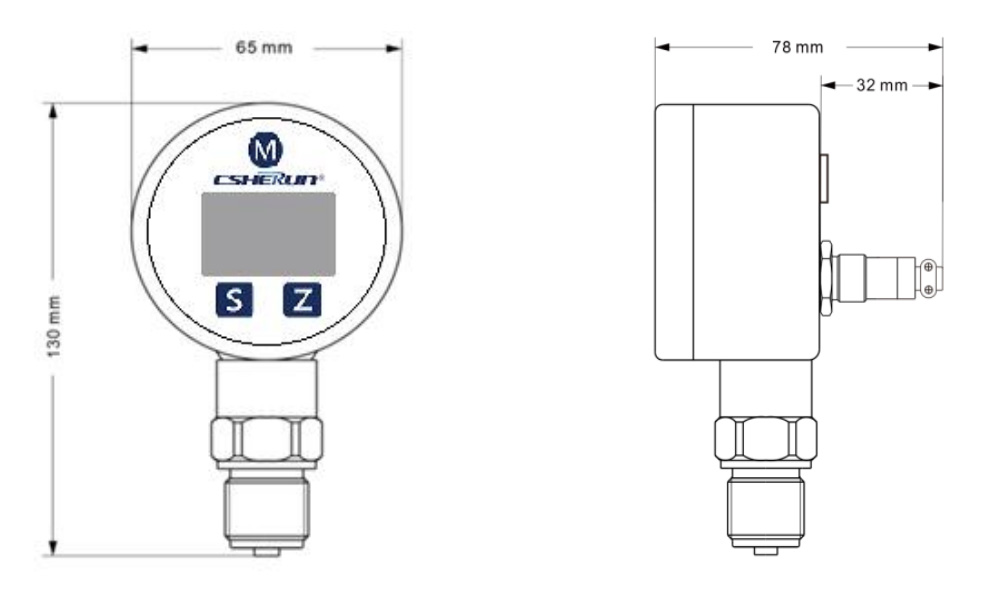

Dimension Unit: mm
