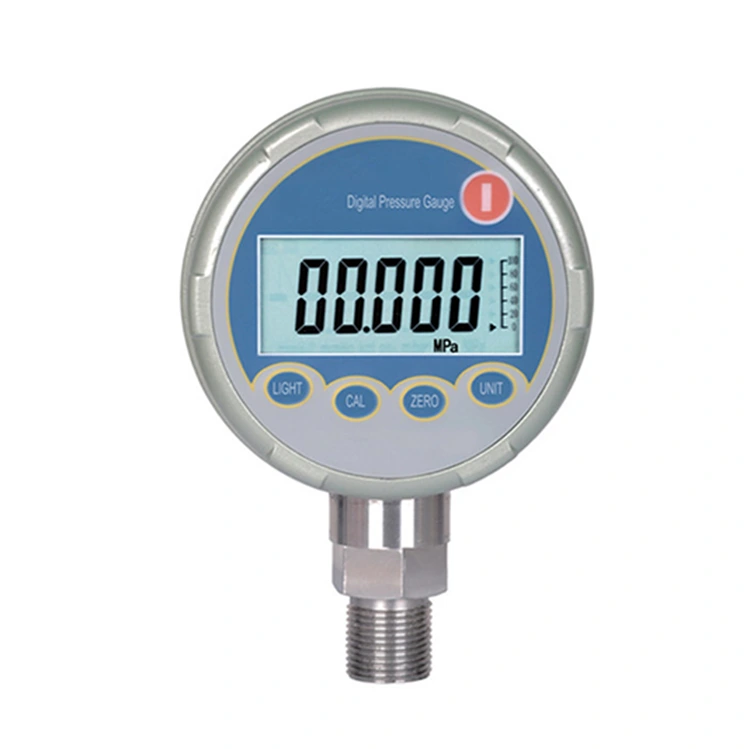

As the professional manufacturer,you can rest assured to buy CSHERUN Digital Pressure Gauges from our factory and we will offer you the best after-sale service and timely delivery. CSHERUN Digital Pressure Gauges are reliable and accurate for industrial applications.Using our Digital Pressure Gauges with confidence,it is a versatile and dependable solution for precise pressure measurement in various industrial settings. Combining accuracy with ease of use, this gauge is designed to meet the demands of modern industrial applications.The product has been used in the industries of power, chemical, petrol, metallurgy, metering,etc.
● 5-digit large LCD with backlight
● Nine pressure units available
● Zero point, full scale calibration function
● Adopting the special software treatment technology, it is unnecessary to preheat
● RS232 communication port can communicate with PC
● Temperature compensating
● Overload alarm function
● % indication with bar graph scale for visual reference
● Stainless steel bottom connection for robustness
● Equipped with rugged aluminum alloy cover
● CSHERUN Digital Pressure Gauges obtain CE&EX certification
CSHERUN Digital Pressure Gauges offers a reliable and accurate solution for pressure measurement in industrial applications. Its digital display provides clear and precise readings, and the robust construction ensures long-lasting performance in demanding environments. With its versatile applications and easy operation, it is the ideal choice for engineers and technicians seeking a dependable pressure measurement tool.
|
Range |
(-1-0)bar,(0-700)bar,(See the pressure ranges selection sheet) |
|
Accuracy |
±0.05%F.S,±0.1%F.S,±0.2%F.S,±0.5%F.S |
|
Units |
kPa, Pa, psi, kgf/cm²,bar,mbar,mmH2O,mmHg,MPa |
|
Temperature compensating range |
(-10-50)℃ |
|
Display |
5 digits with 14mm character height |
|
Connection |
M20×1.5, 1/2''NPT,1/4''NPT,1/2''BSP,or 1/4''BSP male thread |
|
Dimensions |
Φ93mm×41mm |
|
Total Height |
134mm |
|
Weight |
0.5kg |
Gauge Pressure
|
No. |
Pressure Rang |
Accuracy |
Media |
|
|
（psi） |
（bar） |
|||
|
CS601-1 |
(0~10) |
(0~0.7) |
0.05,0.1,0.2,0.5 |
G |
|
CS601-2 |
(0~15) |
(0~1) |
0.05/0.1/0.2/0.5 |
G |
|
CS601-3 |
(0~30) |
(0~2) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-4 |
(0~60) |
(0~4) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-5 |
(0~100) |
(0~7) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-6 |
(0~200) |
(0~14) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-7 |
(0~300) |
(0~20) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-8 |
(0~500) |
(0~35) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-9 |
(0~600) |
(0~40) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-10 |
(0~1000) |
(0~70) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-11 |
(0~2000) |
(0~140) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-12 |
(0~3000) |
(0~200) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-13 |
(0~5000) |
(0~350) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-14 |
(0~6000) |
(0~400) |
0.05/0.1/0.2/0.5 |
G,L |
|
CS601-15 |
(0~10000) |
(0~700) |
0.05/0.1/0.2/0.5 |
G,L |
Compound Range
|
No. |
Pressure Rang |
Accuracy |
Media |
|
|
（psi） |
（mbar） |
|||
|
CS601-16 |
(-0.4~0.4) |
(-0.025~0.025) |
0.05/0.1/0.2/0.5 |
G |
|
CS601-17 |
(-0.8~0.8) |
(-0.05~0.05) |
0.05/0.1/0.2/0.5 |
G |
|
CS601-18 |
(-1.5~1.5) |
(-0.1~0.1) |
0.05/0.1/0.2/0.5 |
G |
|
CS601-19 |
(-6~6) |
(-0.4~0.4) |
0.05/0.1/0.2/0.5 |
G |
|
CS601-20 |
(-15~15) |
(-1~1) |
0.05/0.1/0.2/0.5 |
G |
Remark:
1.G=Gas,L=Liquid
2.Pressure Port :1/2''NPT male,1/4''NPT male,1/2''BSP male,1/4''BSP male
