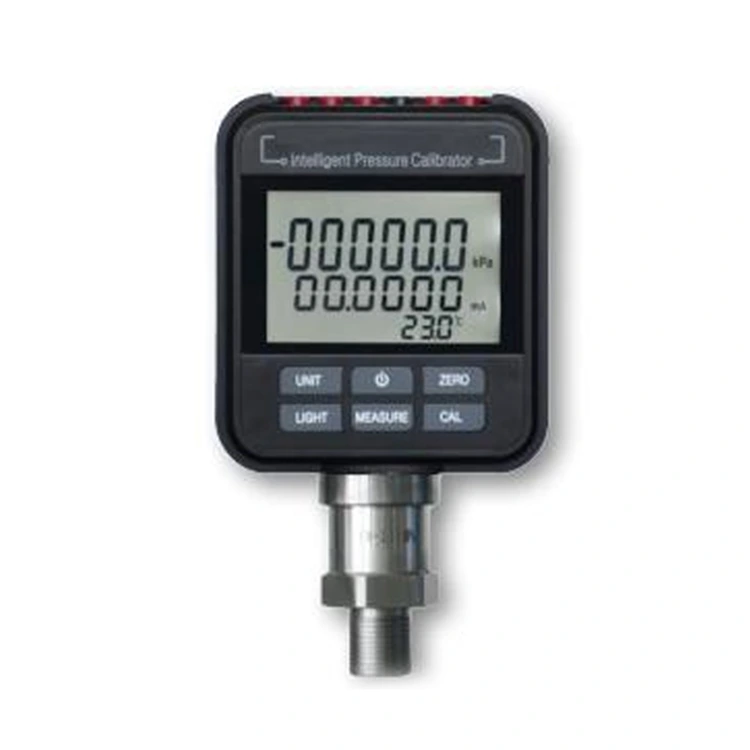

As the professional manufacturer, we would like to provide you CSHERUN Precision Digital Pressure Gauge. And we will offer you the best after-sale service and timely delivery.Precision Digital Pressure Gauge - Unmatched Accuracy for Demanding Applications.Introducing our cutting-edge Precision Digital Pressure Gauge, designed to deliver unparalleled accuracy and reliability in the most demanding industrial environments. Combining advanced technology with user-friendly features, this gauge is the perfect solution for applications requiring precise pressure measurement.It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Features
● Precision Digital Pressure Gauge with rugged ABS plastic
● Pressure-transmitting medium including air, oil, and water
● 6-digit LCD screen with backlight
● Nine pressure units available
● Zero point, full scale calibration function
● 7.4Vdc rechargeable lithium battery and special charger
● Overload and short circuit protection
● Light weight, small size, easy operation
● Rapid in operation, compatible with computer software
● Precision Digital Pressure Gauge supports Hart Version 5
● With max and min values function
● CE&EX approved
Applications:
CSHERUN Precision Digital Pressure Gauge for a variety of industries, including:
Chemical and Petrochemical: For precise monitoring of process pressures in reactors, pipelines, and storage tanks.
Oil and Gas: For accurate pressure measurement in drilling, production, and transportation processes.
Power Generation: For monitoring boiler pressures, turbine operations, and hydraulic systems.
Water and Wastewater Treatment: For controlling pump pressures, filter operations, and distribution systems.
|
Range |
(-1-0)bar,(0-2500)bar,(See the pressure ranges selection sheet) |
|
Accuracy |
±0.025%F.S,±0.05%F.S,±0.1%F.S, Current measurement: (0-25)mA Accuracy:±(0.02%R.D+0.005%F.S) Voltage measurement: (0-25)V Accuracy:±(0.02%R.D+0.005%F.S) |
|
Temperature compensating range |
(-10-50)℃ |
|
DC output |
DC24V(≤30mA) Accuracy: ±1%F.S |
|
Power supply |
7.4Vdc Lithium battery power supply and special charger |
|
Connection |
M20×1.5 or 1/4"NPT male thread |
|

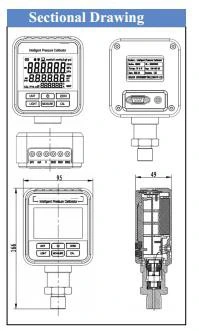

Dimensions |
Φ95mmx49mm |
|
Total Height |
166mm |
|
Weight |
0.75kg |
Gauge Pressure
|
No. |
Pressure Rang |
Accuracy |
Media |
|
|
（psi） |
（bar） |
|||
|
CS602-1 |
(0~10) |
(0~0.7) |
0.025,0.05 |
G |
|
CS602-2 |
(0~15) |
(0~1) |
0.025,0.05 |
G |
|
CS602-3 |
(0~30) |
(0~2) |
0.025,0.05 |
G,L |
|
CS602-4 |
(0~60) |
(0~4) |
0.025,0.05 |
G,L |
|
CS602-5 |
(0~100) |
(0~7) |
0.025,0.05 |
G,L |
|
CS602-6 |
(0~200) |
(0~14) |
0.025,0.05 |
G,L |
|
CS602-7 |
(0~300) |
(0~20) |
0.025,0.05 |
G,L |
|
CS602-8 |
(0~500) |
(0~35) |
0.025,0.05 |
G,L |
|
CS602-9 |
(0~600) |
(0~40) |
0.025,0.05 |
G,L |
|
CS602-10 |
(0~1000) |
(0~70) |
0.025,0.05 |
G,L |
|
CS602-11 |
(0~2000) |
(0~140) |
0.025,0.05 |
G,L |
|
CS602-12 |
(0~3000) |
(0~200) |
0.025,0.05 |
G,L |
|
CS602-13 |
(0~5000) |
(0~350) |
0.025,0.05 |
G,L |
|
CS602-14 |
(0~6000) |
(0~400) |
0.025,0.05 |
G,L |
|
CS602-15 |
(0~10000) |
(0~700) |
0.025,0.05 |
G,L |
|
CS602-16 |
(0~15000) |
(0~1000) |
0.025,0.05 |
G,L |
|
CS602-17 |
(0~24000) |
(0~1600) |
0.05 |
G,L |
|
CS602-18 |
(0~37000) |
(0~2500) |
0.05 |
G,L |
Compound Range
|
No. |
Pressure Rang |
Accuracy |
Media |
|
|
（psi） |
（bar） |
|||
|
CS602-19 |
(-0.4~0.4) |
(-0.025~0.025) |
0.025,0.05 |
G |
|
CS602-20 |
(-0.8~0.8) |
(-0.05~0.05) |
0.025,0.05 |
G |
|
CS602-21 |
(-1.5~1.5) |
(-0.1~0.1) |
0.025,0.05 |
G |
|
CS602-22 |
(-6~6) |
(-0.4~0.4) |
0.025,0.05 |
G |
|
CS602-23 |
(-15~15) |
(-1~1) |
0.025,0.05 |
G |
Remark:
1.G=Gas,L=Liquid
2..Pressure Port :1/4''NPT male
