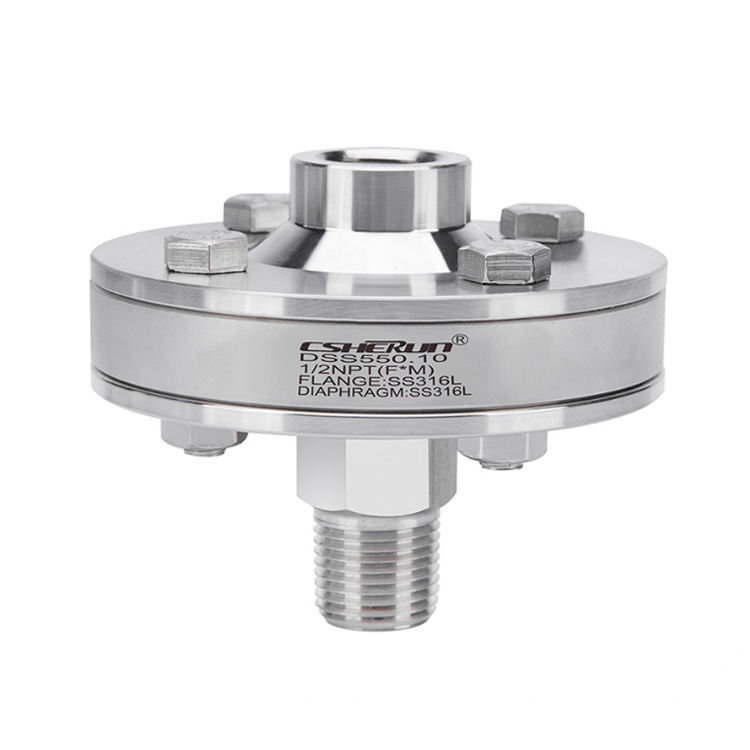

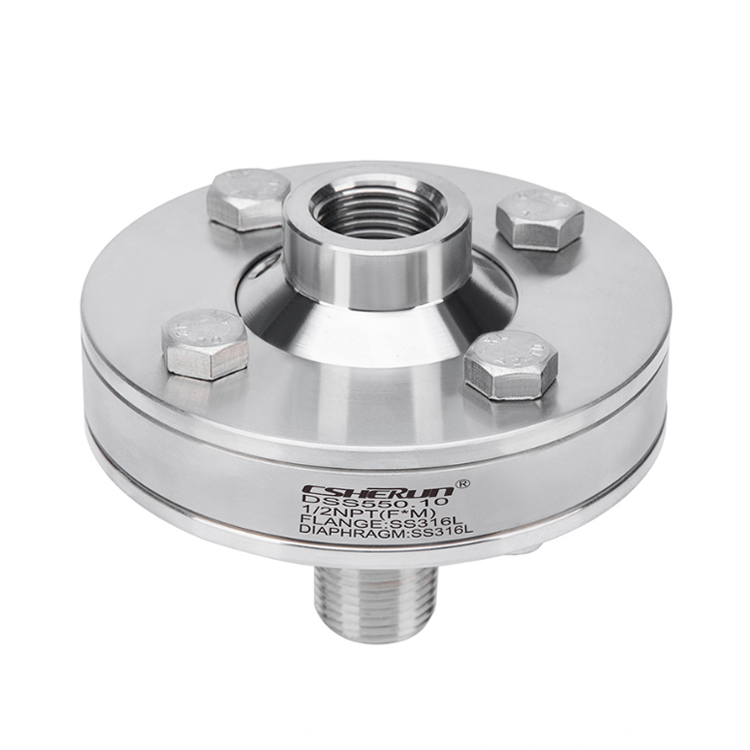

Diaphragm Seal With Thread Connection

Introducing the Diaphragm Seal with Thread Connection- Model DS550.10: Reliable and Accurate Pressure Measurement with a Threaded Design.

The Diaphragm Seal With Thread Connectionis constructed from high-quality materials that are compatible with a wide range of media and temperatures. Its threaded connection provides a secure and leak-tight fit, ensuring accurate and reliable pressure measurements even in harsh environments.

The threaded design of the Diaphragm Seal With Thread Connection offers several advantages, including ease of installation, robust performance, and compatibility with a wide range of process connections. This makes it an ideal choice for applications in the oil and gas, chemical, power generation, and water treatment industries, where accurate pressure measurement is crucial.

As a trusted manufacturer of Diaphragm Seal With Thread Connection, we are committed to providing high-quality products and exceptional customer service. The Diaphragm Seal With Thread Connectionis designed and manufactured to meet the stringent standards of the industrial sector, ensuring reliability and accuracy in your pressure measurement needs.

Whether you're in the oil and gas, chemical, power generation, water treatment, or other critical industries, the Diaphragm Seal with Thread Connection Diaphragm Seal With Thread Connection is your go-to solution for reliable and accurate pressure measurement with a threaded design. Contact us today to learn more about our products and services.

Applications

●For aggressive, hot, corrosive, environmentally hazardous or toxic media

●Process industry

Special features

●Process connection with thread

●Version with internal diaphragm, diaphragm seal parts screwed together

●Large selection of process connections and materials

●Flushing connections optionally available

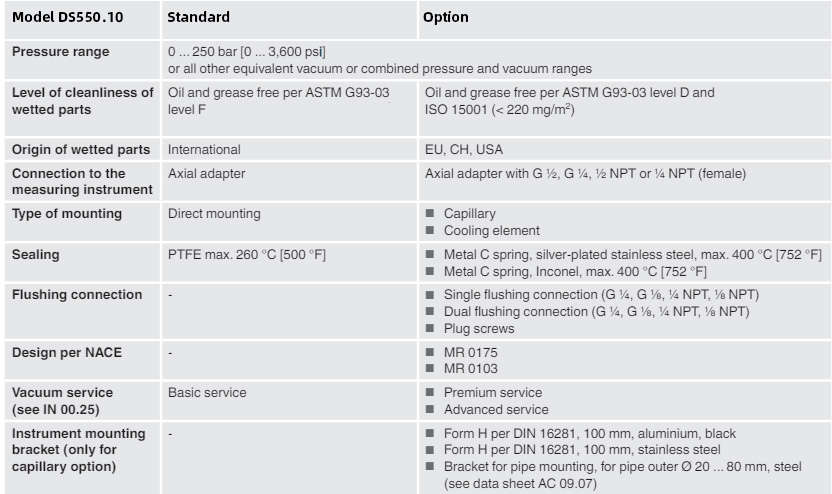

Specification

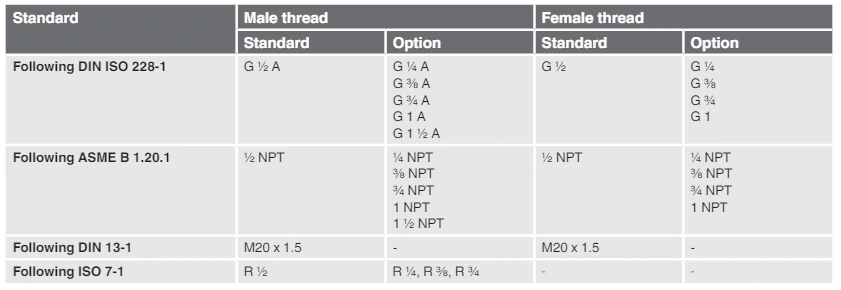

Process connection

Other process connections on request

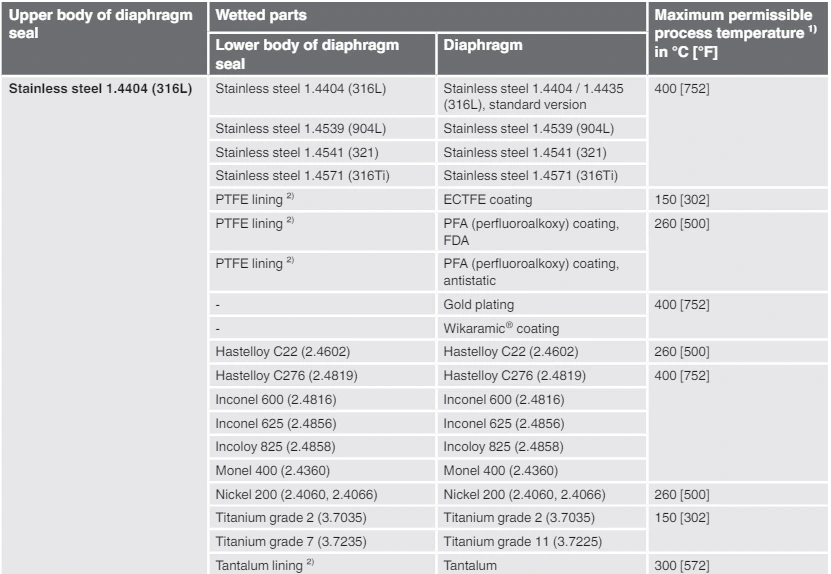

Material combinations

Further material combinations for special process temperatures on request

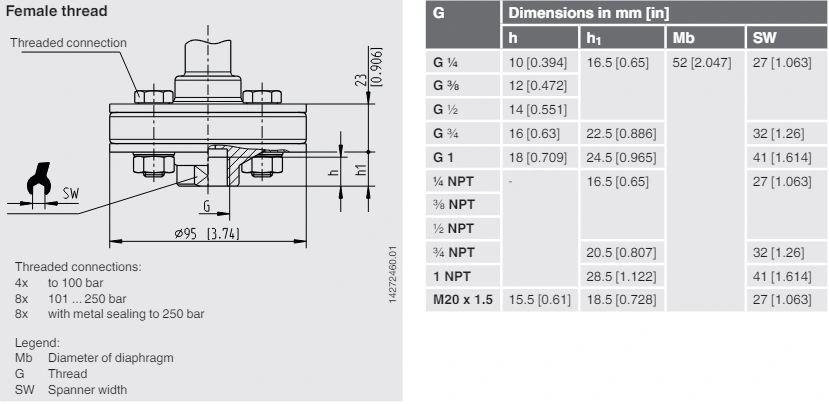

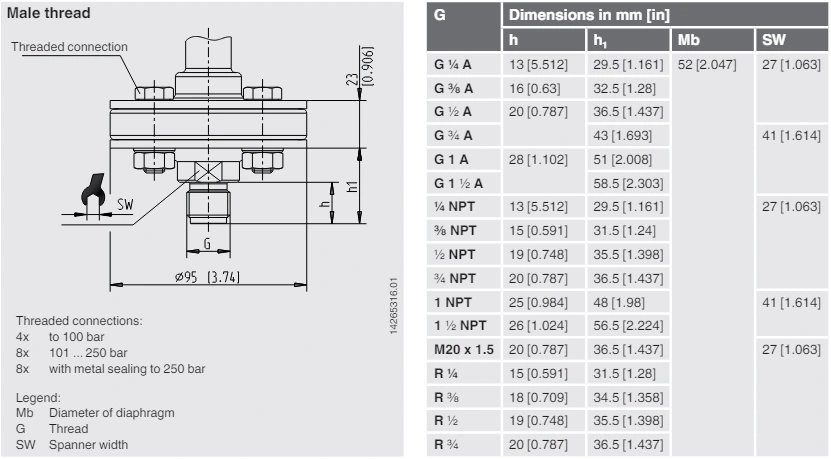

Dimensions in mm [in]

Diaphragm seal:

Diaphragm seal model / Process connection (process connection standard, thread, nominal pressure rating) / Material (upper body, diaphragm, lower body) / Sealing / Retainer parts (retainer flange, screws) / Flushing connection (plug screw) / Connection to the measuring instrument / Level of cleanliness of wetted parts / Origin of wetted parts / Certificates

Diaphragm seal system:
