Introducing the Diapragm Seal With Flange Connection- Model DS560.27: The Ultimate Solution for Pressure Measurement in Harsh Environments

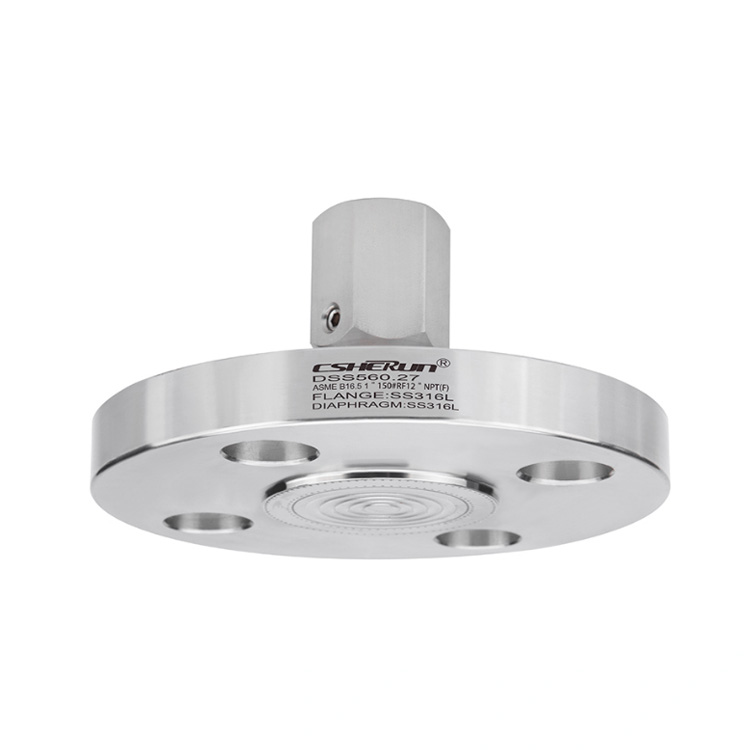

The Model DS560.27 diaphragm seal is equipped with a flange connection that allows for easy installation and integration into your existing process systems. Its robust construction and high-quality materials ensure long-lasting performance and durability, making it an ideal choice for a wide range of industrial applications.
The flush diaphragm design of the Diapragm Seal With Flange Connection minimizes the risk of media accumulation and clogging, providing a clean and accurate pressure measurement. This feature is particularly beneficial in applications involving viscous or particle-laden media, ensuring that your pressure measurements are not compromised by media build-up.
As a trusted manufacturer of diaphragm seals, we are committed to providing high-quality products and exceptional customer service. The Diapragm Seal With Flange Connection designed and manufactured to meet the stringent standards of the industrial sector, ensuring reliability and accuracy in your pressure measurement needs.
Whether you're in the oil and gas, chemical, power generation, or water treatment industry, the Diapragm Seal With Flange Connection- Model DS560.27 - is your go-to solution for pressure measurement in harsh environments. Contact us today to learn more china CSHERUN products and services.
●Aggressive, highly viscous, crystallising or hot media
●Process industry
●Machine building and automation
●Flange with flush welded diaphragm
●Common standards and nominal widths available
●Wide variety of different materials and material combinations

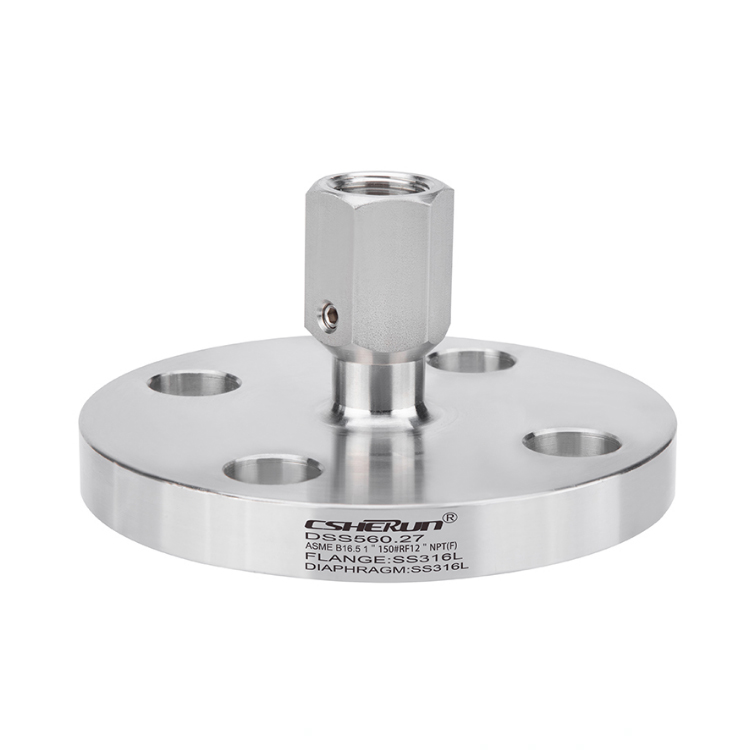

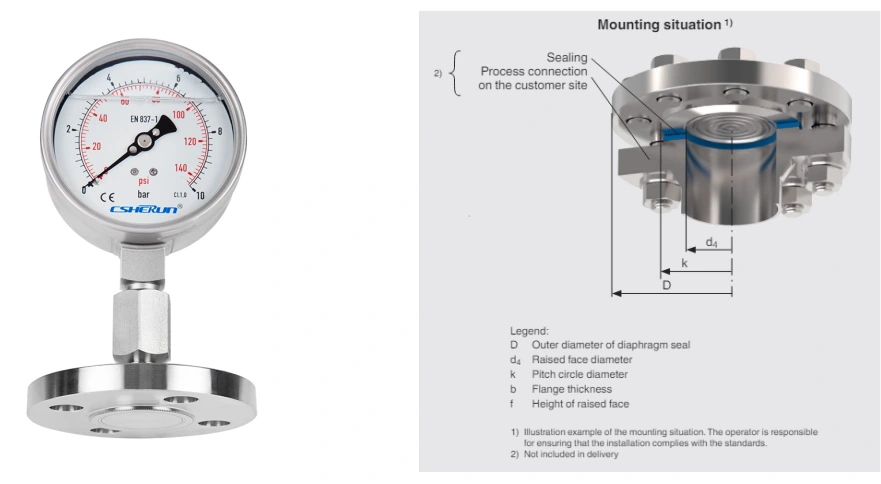

Model DSS560 with directly mounted pressure gauge
Diaphragm seal systems are mounted to existing connections, which are welded to a pipeline, a process reactor or a tank. A diaphragm made of the appropriate material separates the medium from the measuring instrument. The internal space between the diaphragm and the measuring instrument is completely filled with a system fill fluid.
The pressure of the medium is transferred via the elastic diaphragm to the system fill fluid and then on to the measuring instrument. A diaphragm seal and its components are perfectly matched to each other to ensure a reliable measurement.
Mounting of the diaphragm seal to the measuring instruments may be made via a direct connection, for high temperatures via a cooling element or via a flexible capillary.
|
Version |
Diaphragm seal with flange connection |
|
Other versions |
■ Per NACE MR0175 / ISO 15156, use in H2S-containing environments in oil and gas production ■ Per NACE MR0103 / ISO 17945, metals resistant to hydrogen sulphide stress cracking ■ With pre-volume deflagration flame arrester for mounting to zone 0 (EPL Ga) |
|
Pressure range |
The maximum pressure range depends on the selection of the process connection and instrument |
|
Connection to the instrument |
■ Axial connection adapter for welded connection ■ Suitable connection adapter to the instrument (e.g. G ½, G ¼, ½ NPT or ¼ NPT) |
|
Mounting type |
■ Direct mounting ■ Capillary ■ Heat sink |
|
Vacuum service |
■ Basic service ■ Advanced service ■ Premium service |
Other process connections on request

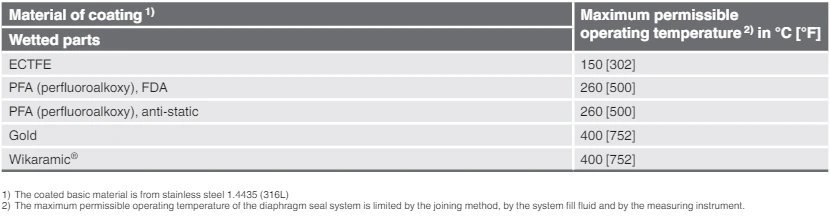

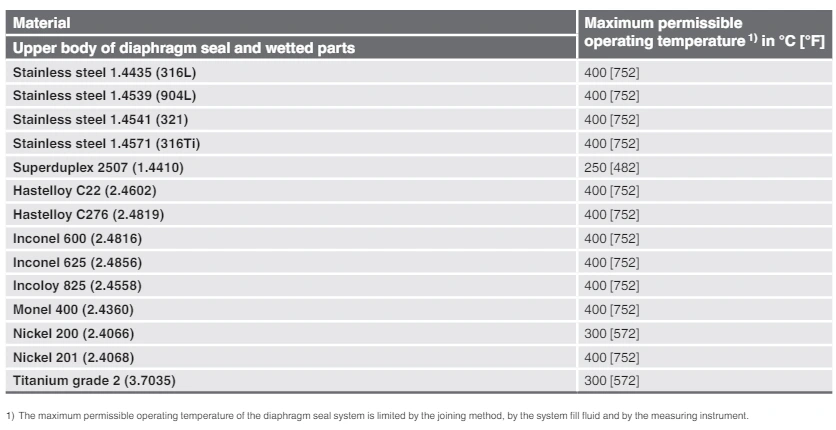

Further materials for special process temperatures on request.

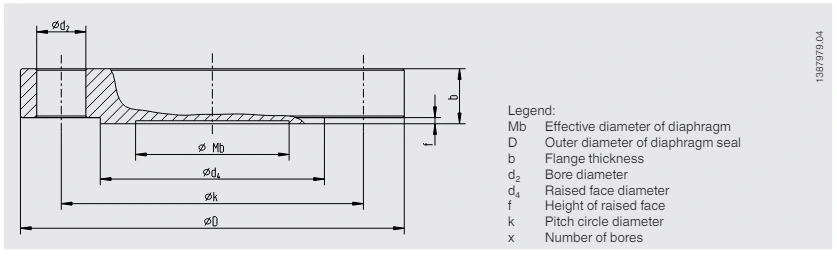

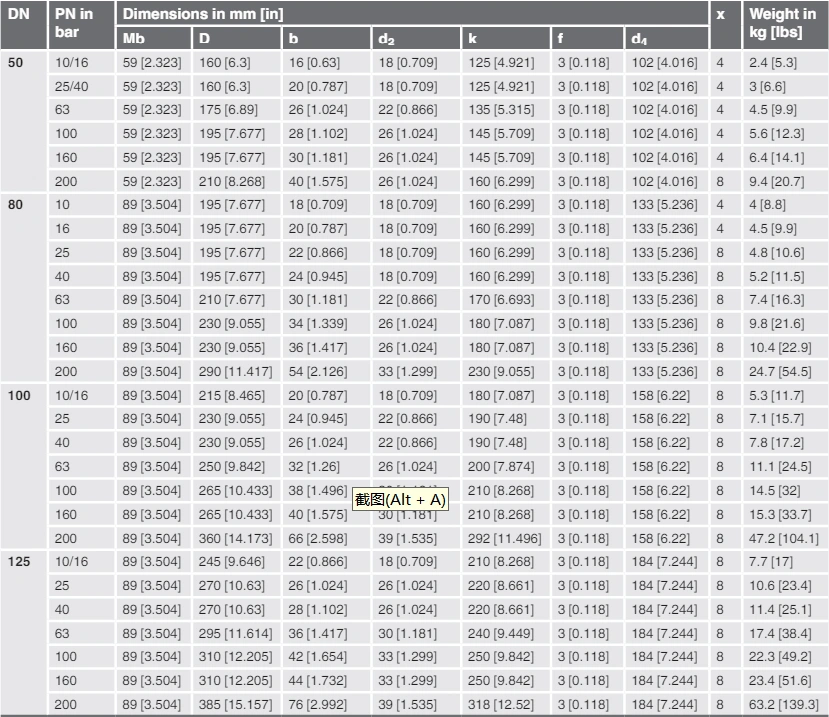

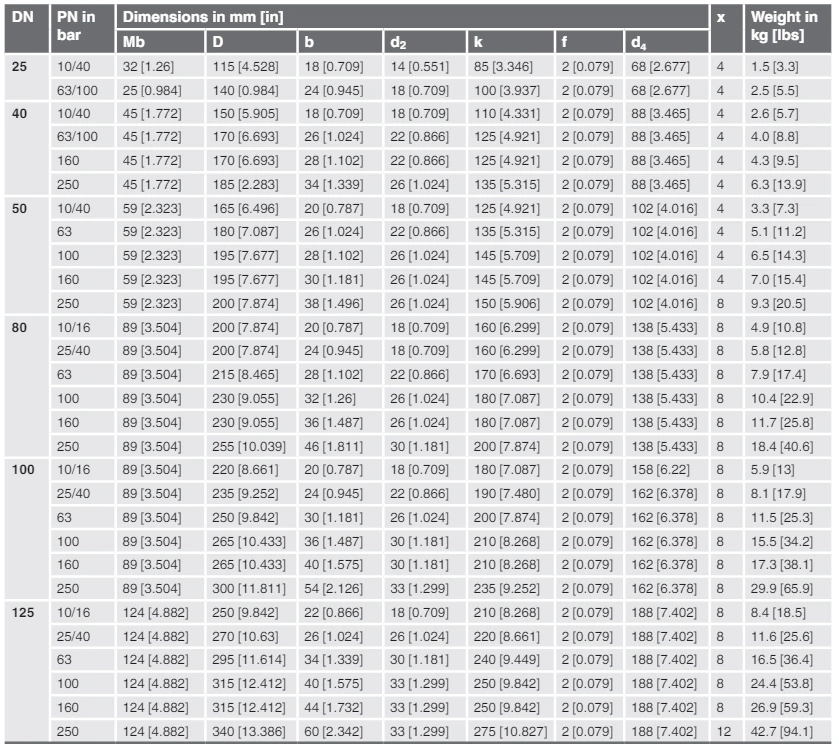

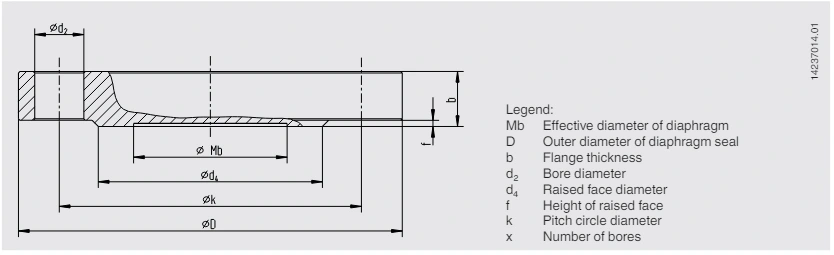

Flange connection in line with DIN EN 1092-1, form B
Further dimensions and higher nominal pressures on request

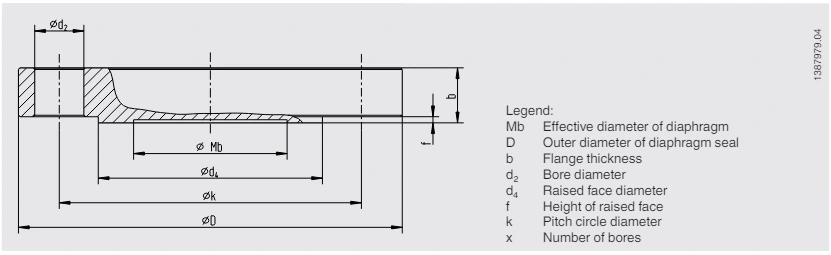

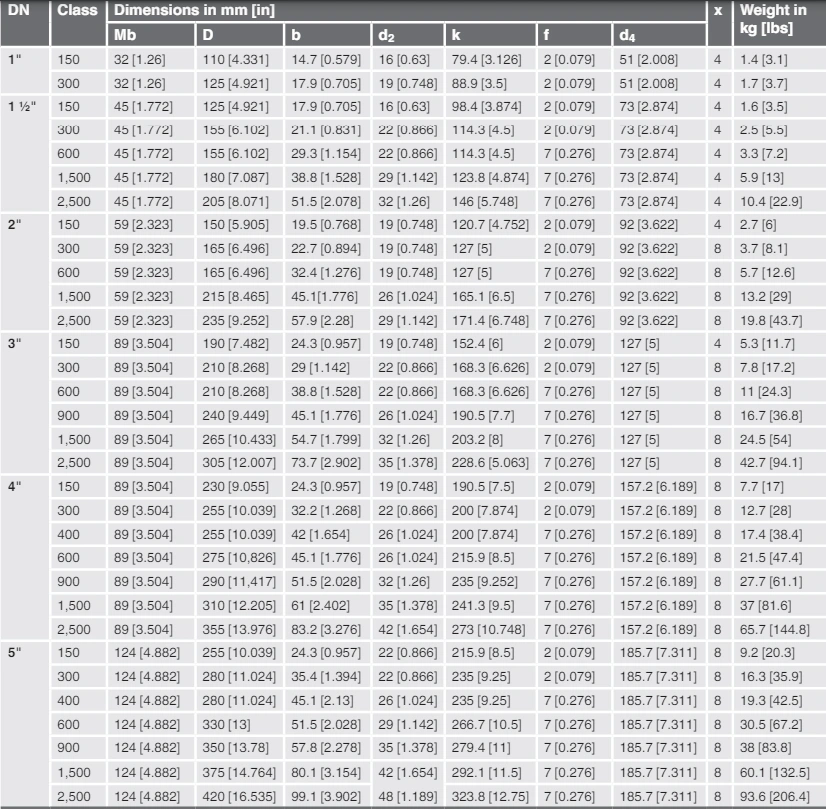

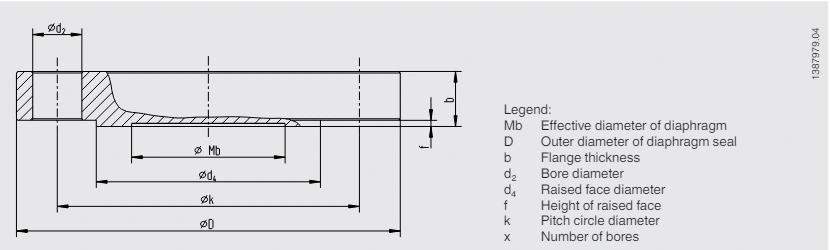

Flange connection in line with ASME B16.5-2017, RF
Flange connection in line with GOST 33259, type B
Further dimensions and higher nominal pressures on request

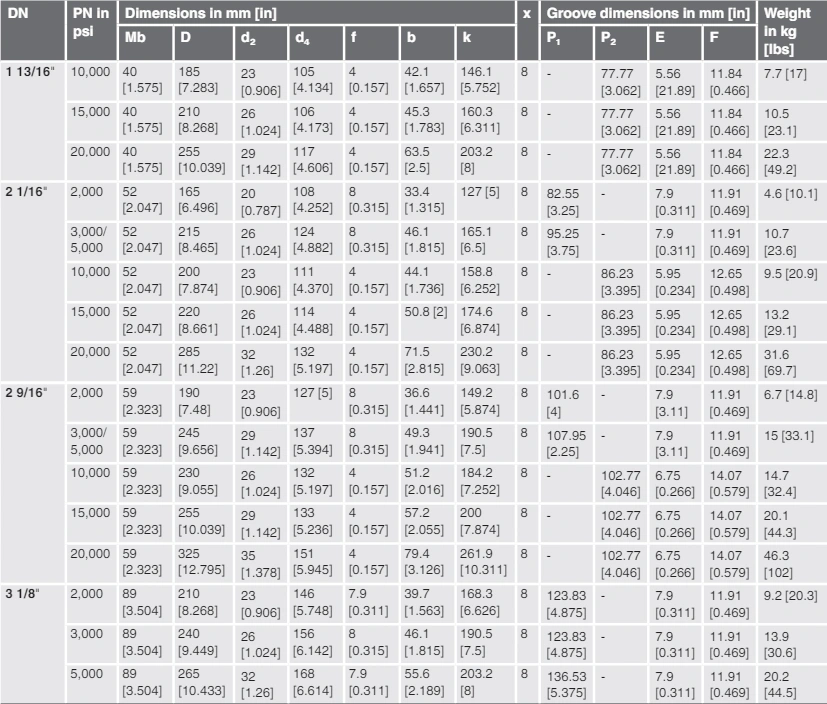

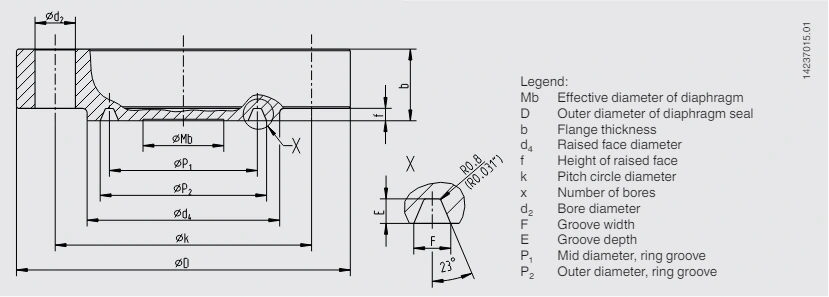

Flange connection in line with API 6A, ring-joint groove
Further dimensions and higher nominal pressures on request

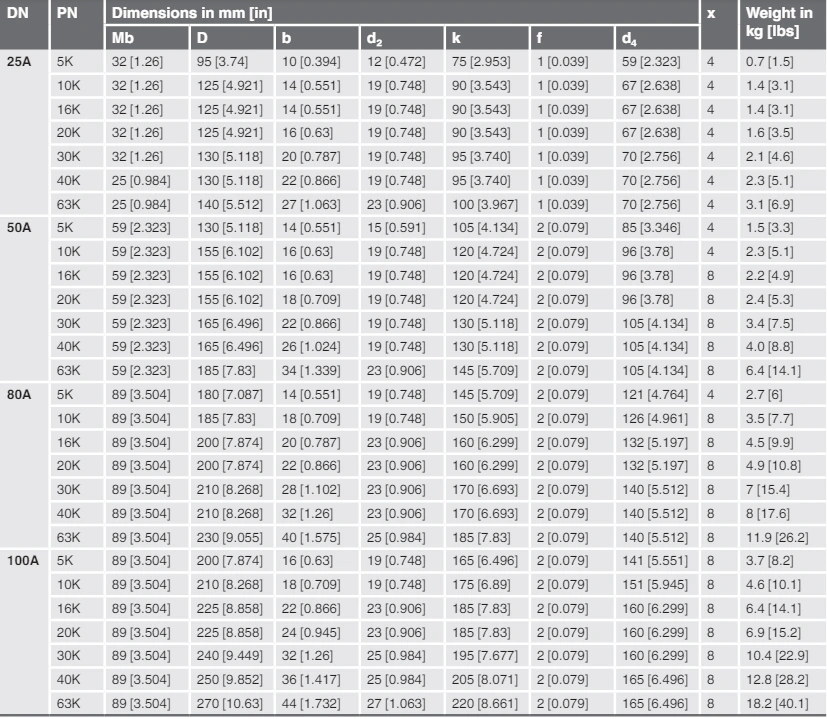

Flange connection in line with JIS B 2220, RF
Further dimensions and higher nominal pressures on request

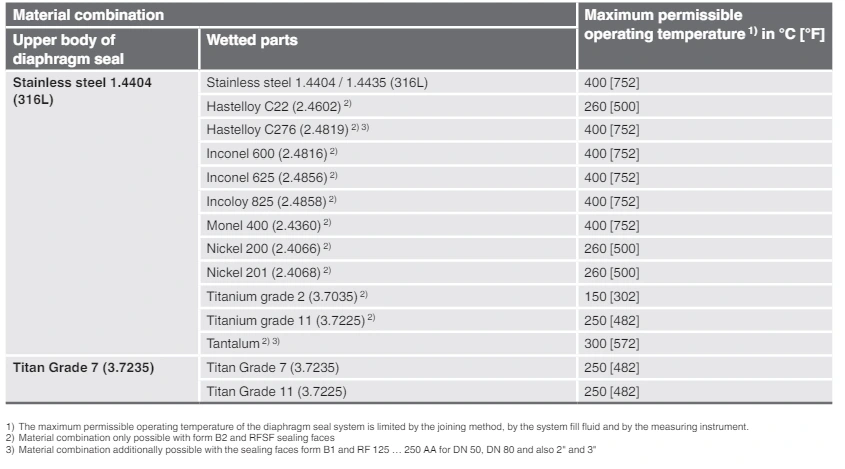

Diaphragm seal model / Process connection (standard, flange size, nominal pressure, sealing face) / Material combination (upper body of diaphragm seal, wetted parts) / Level of cleanliness of wetted parts / Origin of wetted parts / Design per NACE / Connection to the measuring instrument / Certificates / Flushing ring
Diaphragm seal model / Pressure measuring instrument model (per data sheet) / Mounting (direct mounting, cooling element, capillary) / Material combination (upper body of diaphragm seal, wetted parts) / Min. and max. process temperature / Min. and max. ambient temperature / Vacuum service / System fill fluid / Certificates / Height difference / Level of cleanliness of wetted parts / Origin of wetted parts / Design per NACE / Diaphragm seal for mounting to zone 0 / Instrument mounting bracket / Process connection (standard, flange size, nominal pressure, sealing face) / Flushing ring
