● For flange-connection diaphragm seals with flush diaphragm or cell-type design
● Flushing of process lines to avoid deposits or clogging
● Cleaning deposits off diaphragms
● Measuring location calibration after separation from the process
● Wide choice of special materials
● Common standards, nominal widths and flushing connections available

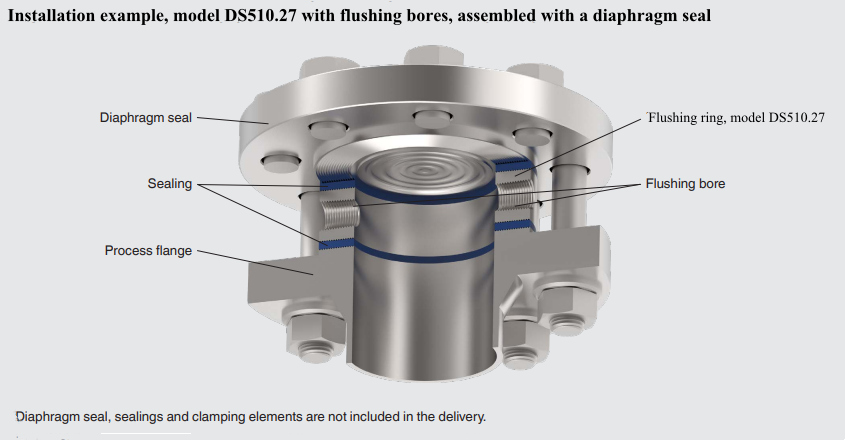

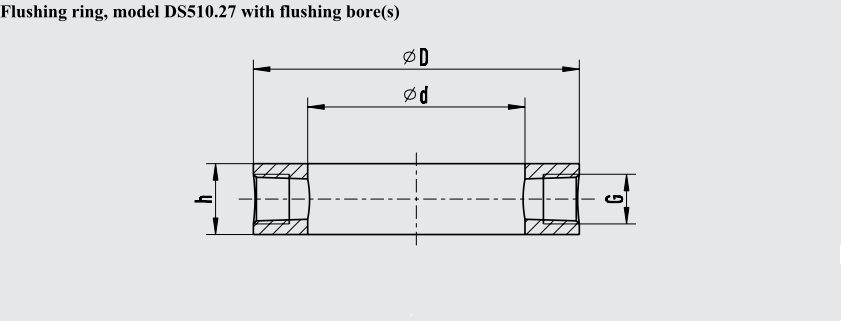

● Flushing bores with plug screws

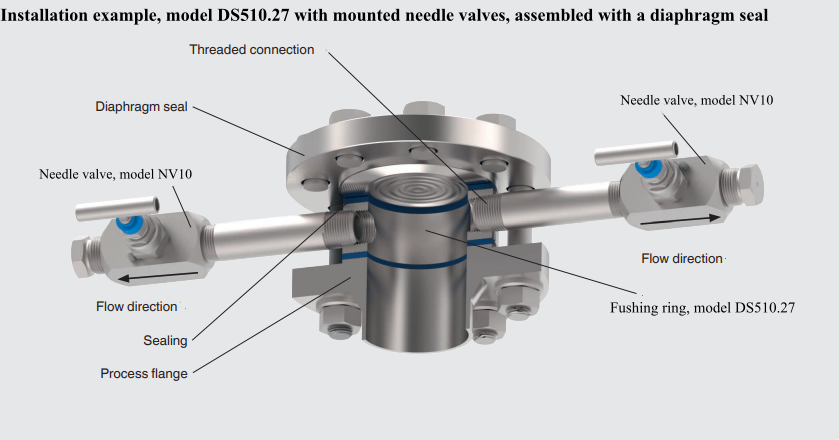

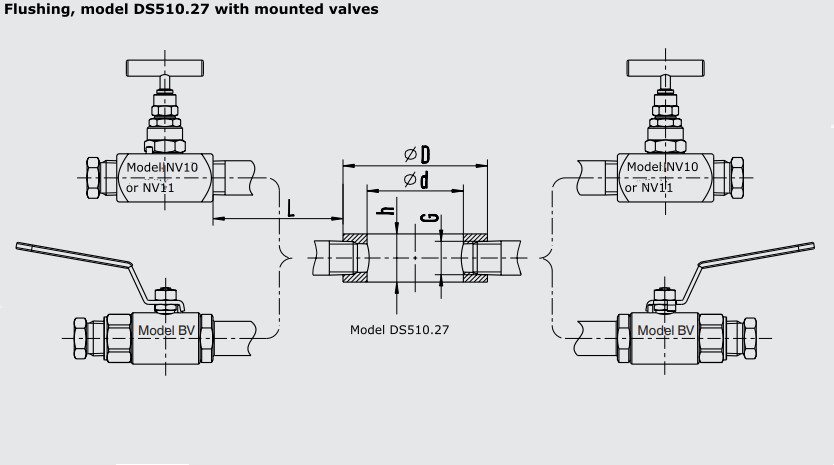

● Flushing ring with mounted valves
Other process connections and materials on request.

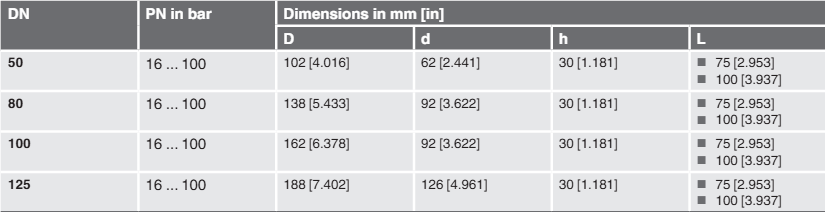

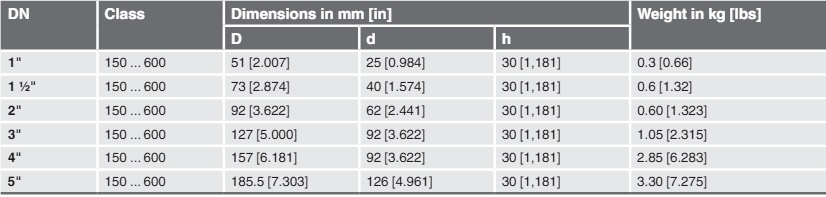

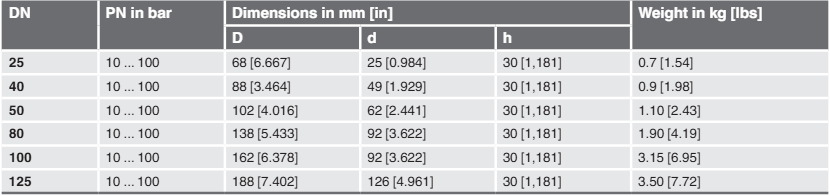

Further dimensions and higher nominal pressures on request

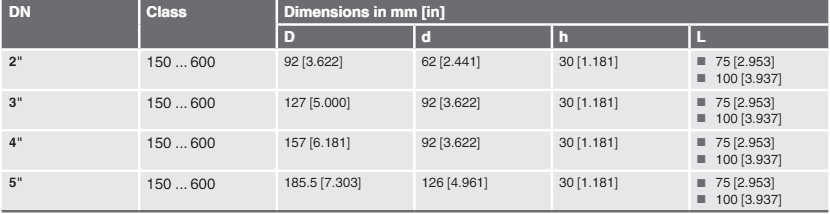

Further dimensions and higher nominal pressures on request

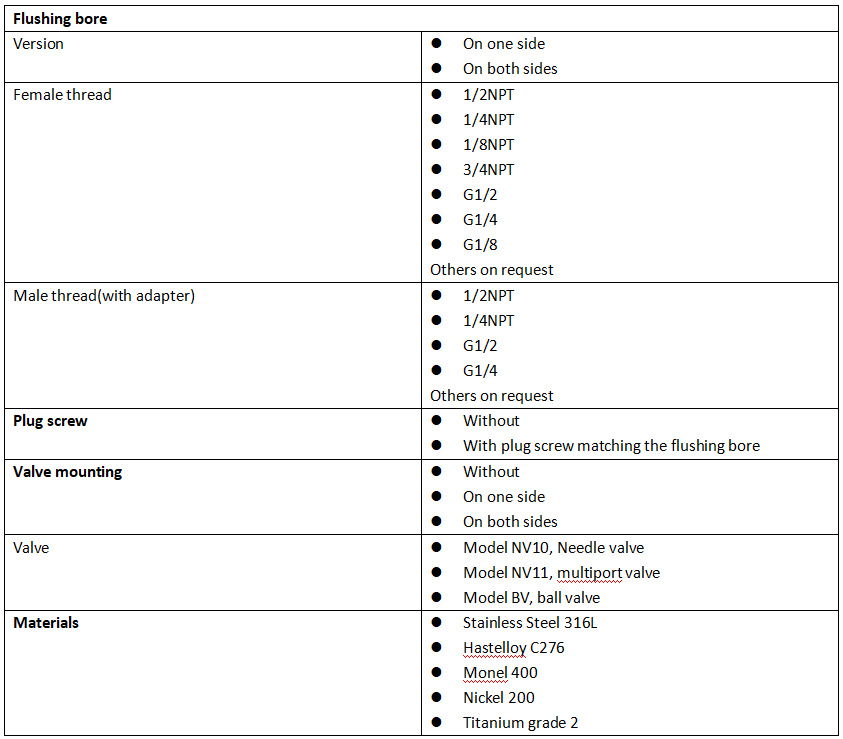

Model / Process connection (standard, nominal width, nominal pressure rating) / Sealing face form / Material / Flushing bore / Valve mounting / Plug screw / Options
