The following is the introduction of high quality Phenolic Capsule Pressure Gauge, hoping to help you better understand Phenolic Capsule Pressure Gauge.

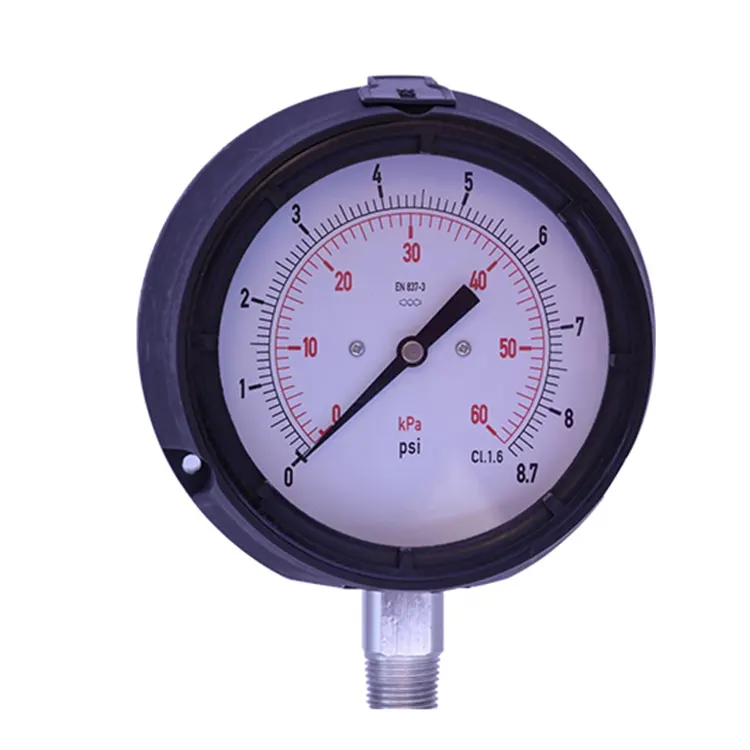

The CSHERUN Phenolic Capsule Pressure Gauge is ideal for measuring gaseous, dry, and aggressive liquid media in demanding environments. It excels in the process industry, including plant construction, the chemical and petrochemical industries, power plants, mining, on/off shore operations, and environmental technology. With its superior performance and reliability, the CSHERUN Phenolic Capsule Pressure Gauge is your trusted partner in pressure measurement. Welcome new and old customers to continue to cooperate with us to create a better future!
● For gaseous, dry and liquid aggressive media, also in aggressive environments
● Process industry: Plant construction, chemical industry, petrochemical industry, power plants, mining, on/off shore and environmental technology
● Safety version with solid baffle wall designed
● High dynamic pressure loads and vibrations
● The shell has good fire resistance, insulation, and environmental protection performance
● Scale ranges from 0 … 2.5mbar to 0 … 600mbar
|
Design |
ASME B40.100 |
|
Nominal size in mm |
115，150 |
|
Accuracy class |
1.0, 1.6 |
|
Scale ranges |
0 … 2.5 to 0 … 600mbar |
|
Pressure limitation |
Steady: Full scale value Fluctuating: 0.9 x full scale value Short time: 1.25 x full scale value |
|
Permissible temperature |
Ambient: -20 … +55 °C Medium: Max +55 °C |
|
Temperature effect |
When the temperature at the measuring system deviates from the reference temperature +20 °C (+68 °F): max. ±0.6 %/10 K of full scale value |
|
Ingress protection per IEC/EN 60529 |
IP54 |
|
Process connection |
Stainless steel 316L 1/4NPT or 1/2NPT(male) |
|
Connection location |
Bottom mount |
|
Capsule element |
Stainless steel 316L |
|
Movement |
Stainless steel |
|
Dial |
Aluminium |
|
Pointer |
Aluminium, black |
|
Case |
Thermoplastic, black, with solid baffle wall and blow-out back |
|
Window |
Plastic |
|
Ring |
Threaded bezel |
■ Other process connection
■ Assembly on diaphragm seals, see product review diaphragm seals
■ Adapter kit for panel mounting
■ Window: Instrument glass or laminated safety glass
■ Dial layout to customer requirements
■ Case filling with silicone
