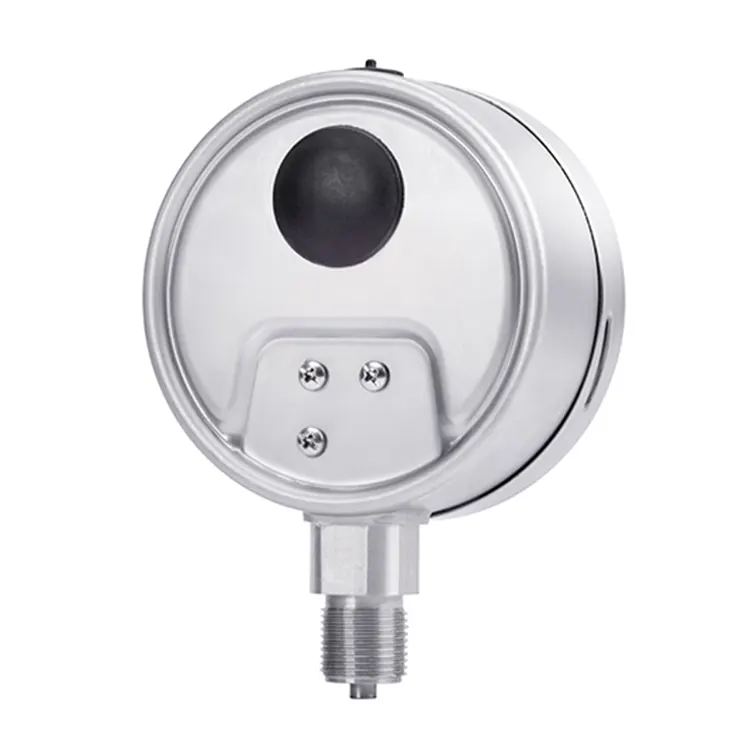

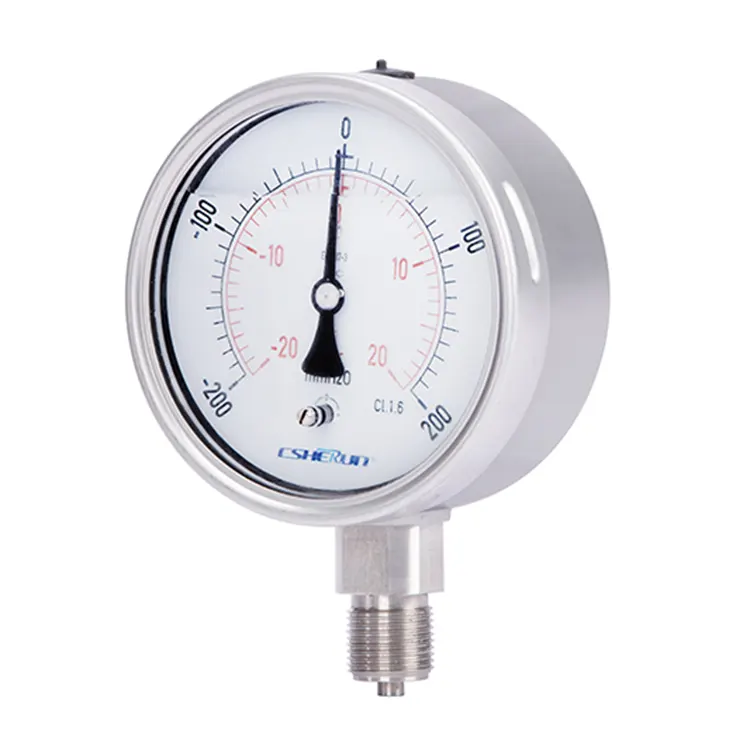

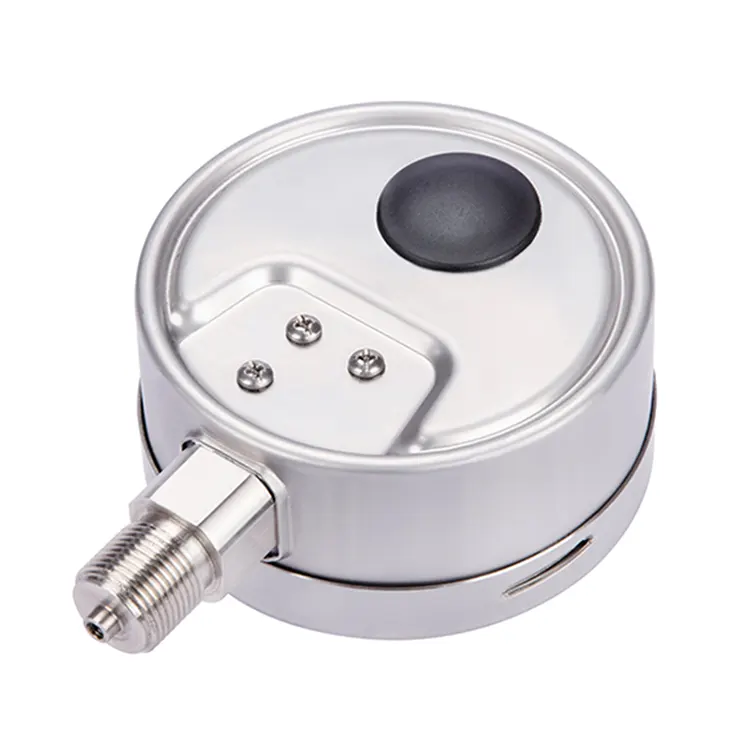

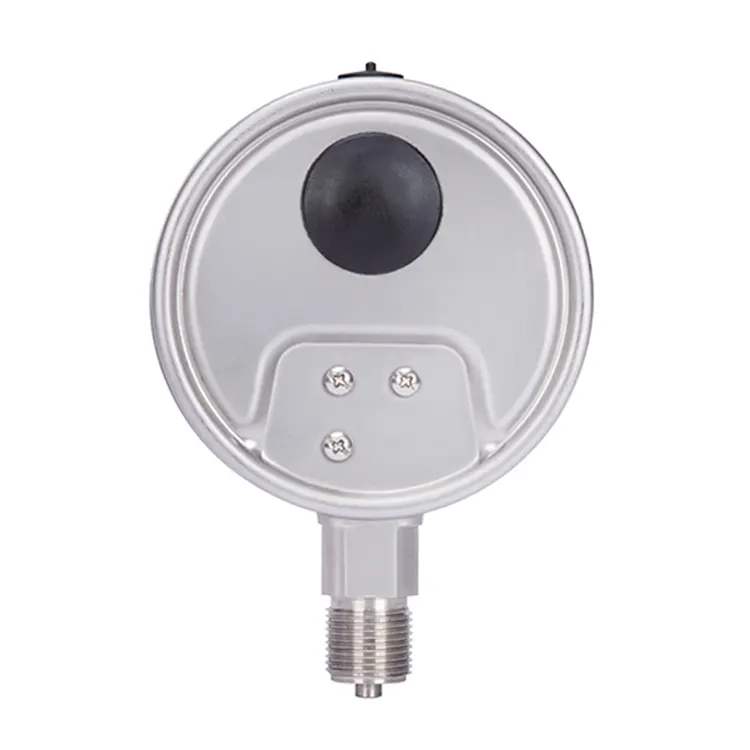

Stainless Steel Capsule Pressure Gauge

CSHERUN Stainless Steel Capsule Pressure Gauge, a made-in-China masterpiece specifically designed for precision measurement of gaseous pressures, with capabilities extending to micro-pressure monitoring and over-pressure protection. Constructed entirely from high-quality stainless steel, this gauge is engineered to withstand the harshest industrial conditions, including high dynamic pressure loads and vibrations.

Boasting a front-facing zero adjustment feature, the CSHERUN Stainless Steel Capsule Pressure Gauge offers unparalleled accuracy and ease of use. Its versatile scale ranges from 0 to 2.5 mbar up to 0 to 600 mbar, catering to a wide variety of applications.

This gauge excels in measuring gaseous, dry, and aggressive liquid media, even in harsh environments. It is ideal for the process industry, including sectors such as chemical, petrochemical, pharmaceutical, and power generation.

For added customization, special dial markings or even your company logo can be printed on the dial upon request. The CSHERUN Stainless Steel Capsule Pressure Gauge stands not just as a tool but as a testament to precision, durability, and personalized service.

Applications

● For gaseous, dry and liquid aggressive media, also in aggressive environments

● Process industry: Chemical,  petrochemical, pharma-ceutical and power generation industries

Special features

● Zero point correction in front

● High dynamic pressure loads and vibrations

● Completely from stainless steel

● Scale ranges from 0 … 2.5mbar  to  0 … 600mbar

Description

Design	EN837-3
Nominal size in mm	63, 100, 160
Accuracy class	1.6 1.0
Zero point setting with adjustment screw	In front, after opening the bayonet ring
Scale ranges	0 … 2.5  to 0 … 600mbar
Pressure limitation	Steady:    Full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature	Ambient:  -20 … +60 °C   unfilled instruments -40 … +60 °C   instruments with silicone filling   Medium: -20 … +100 °C
Temperature effect	On deviation from the reference conditions at the measuring system: ≤ ±0.6 % per 10 °C [≤ ±0.6 % per 18 °F] of full scale value
Ingress protection per IEC/EN 60529	IP54 IP55 IP65
Process connection	Stainless steel 316L   NS 63: G ¼ B (male)  NS 100, 160: G ½ B (male)
Connection location	Bottom mount Lower back mount Centre back mount(only for NS63)
Capsule element	Stainless steel 316L
Movement	Stainless steel
Dial	Aluminium
Pointer	Aluminium, black
Case	Stainless steel
Window	PC (NS 63: Polycarbonate) Laminated safety glass
Ring	Bayonet ring, stainless steel
Filling liquid(optional)	Glycerine (optional)

Options

■ Other process connection

■ Assembly on diaphragm seals, see product review diaphragm seals

■ Panel mounting flange, stainless steel or polished stainless steel

■ Surface mounting lugs on the back, stainless steel

■ Ambient temperatures -40 °C: Silicone oil filling
