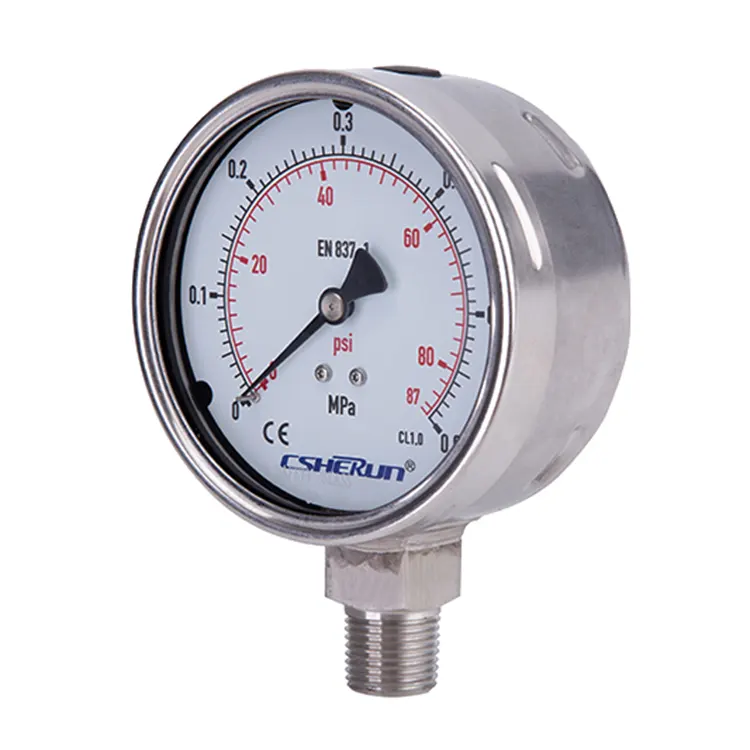

The advanced Fully Stainless Steel Pressure Gauge, proudly manufactured in China, is a versatile instrument primarily utilized for measuring gas pressure, offering capabilities for micro-pressure measurement and over-pressure protection within certain limits. Crafted entirely from stainless steel, it ensures durability and corrosion resistance in various applications.
The CSHERUN Fully Stainless Steel Pressure Gauge excels in handling gaseous and liquid aggressive media that are not highly viscous or prone to crystallization, making it ideal for harsh environments. It finds widespread use in the chemical and petrochemical industries, oil and gas industry, power engineering, water and wastewater technology, machine building, and general plant construction.
As a professional high quality Fully Stainless Steel Pressure Gauge manufacture, you can rest assured to buy Fully Stainless Steel Pressure Gauge from our factory and we will offer you the best after-sale service and timely delivery.
● Excellent load cycle stability and shock resistance
● High dynamic pressure loads and vibrations
● Longer service life, robust
● Completely from stainless steel
● Scale ranges from 0 … 0.6 to 0 … 1,600 bar
● For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
● Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
● Machine building and general plant construction
|
Maximum scale value of pressure gauge (bar) |
≤25 |
＜25 to ≤600 |
＜600 to ≤1000 |
|
Number of pressure cycles |
120 000 |
100 000 |
30 000 |
|
Design |
EN837-1 |
|
|
Nominal size in mm |
63, 100, 160 |
|
|
Accuracy Class (according to EN837-1) |
NS63: CL1.6 NS100, 160: CL1.0 |
|
|
Measuring ranges |
-1 … 0bar to -1 … 15bar 0 …0.6bar to 0 … 1600bar |
|
|
Application area |
Steady: NS63 3/4 X full scale value NS100, 160 full scale value
Dynamic load: NS63 2/3 X full scale value NS100, 160 0.9 X full scale value
Short term: NS63 full scale value NS100, 160 1.3 X fully scale value |
|
|
Operating temperature range |
Ambient: -40 …. +60℃ (unfilled liquid) -20 …. +60℃ (Filling glycerine)
Medium: -40 …. +200℃ (unfilled liquid) -20 …. +100℃ (Filled glycerine) -40 …. +100℃ (Filled Silicone oil) |
|
|
Temperature performance |
When the temperature of the measuring system deviates from the reference temperature (+20℃): max.±0.4%/10k of the span |
|
|
Degree of protection |
IP65 (EN 60529) |
|
|
Process connection |
Stainless Steel 316L G1/4B G1/2B |
| Connection location |
Bottom mount Lower back mount Centre back mount(only for NS63) |
|
Pressure element |
Stainless steel 316 ≤60bar “C” type tube ＞60bar helical tube |
|
Movement |
Stainless steel |
|
Dial |
Aluminium, white, Dial marking black and red |
|
Pointer |
Aluminium, black |
|
Case |
Stainless Steel 304 |
|
Bayonet type bezel |
Stainless steel 304 |
|
Window |
Laminated safety glass |
|
Filling liquid |
Glycerine(99.5%) |
■ Other process connection, the connection thread can be PT, NPT, BSPT etc.
■ Special scales
■ Panel mounting bezel
■ Electrical contacts
■ 3-hole fixing, panel mounting bezel
■ Other special versions
