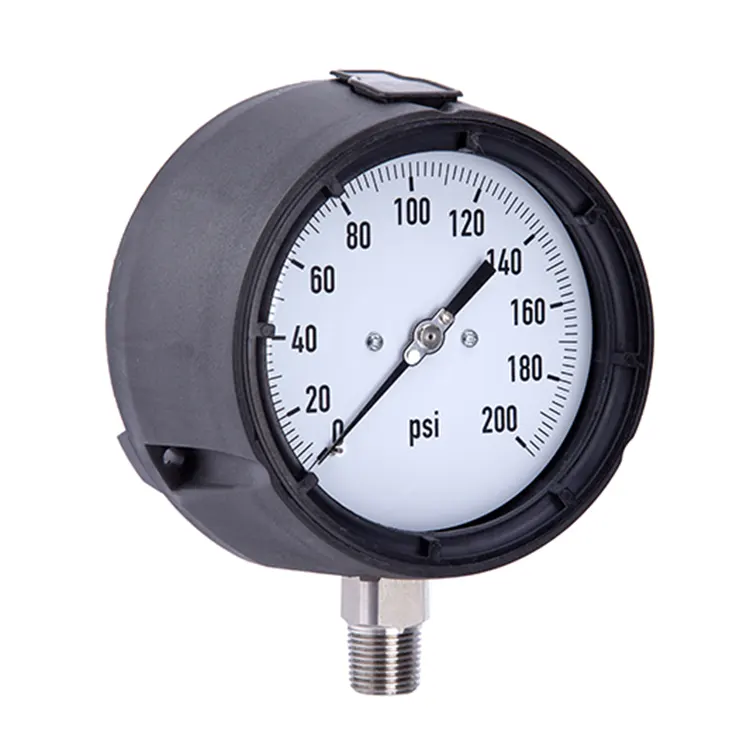

The advanced Process Pressure Gauge, manufactured in China, is primarily utilized for measuring gas pressure, offering capabilities for micro-pressure measurement and over-pressure protection to a certain extent. Crafted from stainless steel and housed in phenolic case materials, this gauge boasts exceptional load-cycle stability and shock resistance.
The Safety version of the Process Pressure Gauge features a solid baffle wall designed in compliance with the requirements and test conditions of ASME B 40.100. Additionally, it includes case filling to withstand high dynamic pressure loads and vibrations, making it suitable for a wide range of applications. The scale ranges from 0 to 10 psi up to 0 to 30,000 psi [0 to 0.6 bar up to 0 to 2,000 bar], providing versatility for various pressure measurement needs.
The CSHERUN Process Pressure Gauge is ideal for applications involving highly dynamic pressure loads and vibrations. It is suitable for measuring gaseous and liquid aggressive media that are not highly viscous or crystallizing, even in harsh environments. This gauge excels in the process industry, including plant construction, the chemical and petrochemical industries, power plants, mining, both onshore and offshore environments, and environmental technology. Additionally, it is well-suited for machine building and general plant construction.
● For applications with highly dynamic pressure loads and vibrations
● For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
● Process industry: Plant construction, chemical industry, petrochemical industry, power plants, mining, on-/offshore and environmental technology
● Machine building and general plant construction
● Excellent load-cycle stability and shock resistance
● Safety version with solid baffle wall designed in compliance with the requirements and test conditions of ASME B 40.100
● With case filling for applications with high dynamic pressure loads and vibrations
● Scale ranges from 0 … 10 to 0 … 30,000 psi [0 ... 0.6 to 0 ... 2,000 bar]
|
Maximum scale value of pressure gauge (bar) |
≤25 |
＜25 to ≤600 |
＜600 to ≤1000 |
|
Number of pressure cycles |
120 000 |
100 000 |
30 000 |
|
Design |
ASME B40.100 |
|
Nominal size in mm |
115, 160 |
|
Accuracy class |
±0.5% < 1600bar ±1% >1600bar |
|
Scale ranges |
0 … 0.06 to 0 … 2000bar |
|
Pressure limitation
|
Steady: Full scale value Fluctuating: 0.9 x full scale value Short time: 1.5x full scale value |
|
Permissible temperature
|
Ambient: -40 … +60 °C (without filling) -20 … +60°C (Glycerine filling)
Medium: -20 … +100°C |
|
Temperature effect |
On deviation from the reference conditions at the measuring system: ≤ ±0.4 % per 18 °F [≤ ±0.4 % per 10 °C] of full scale value |
|
Ingress protection per IEC/EN 60529 |
IP54 IP65 |
|
Process connection
|
Stainless steel 316L Monel, Hastelloy C (optional) 1/4NPT or 1/2NPT(male) 1/4G or 1/2G(male) |
|
Connection location |
Bottom mount Lower back mount |
|
Capsule element |
Stainless steel 316L |
|
Movement |
Stainless steel |
|
Dial |
Aluminium |
|
Pointer |
Aluminium, black |
|
Case |
Thermoplastic, black, with solid baffle wall and blow-out back |
|
Window |
Plastic |
|
Ring |
Threaded bezel |
■ Other process connection
■ Assembly on diaphragm seals, see product review diaphragm seals
■ Adapter kit for panel mounting
■ Window: Instrument glass or laminated safety glass
■ Dial layout to customer requirements
■ Case filling with silicone
