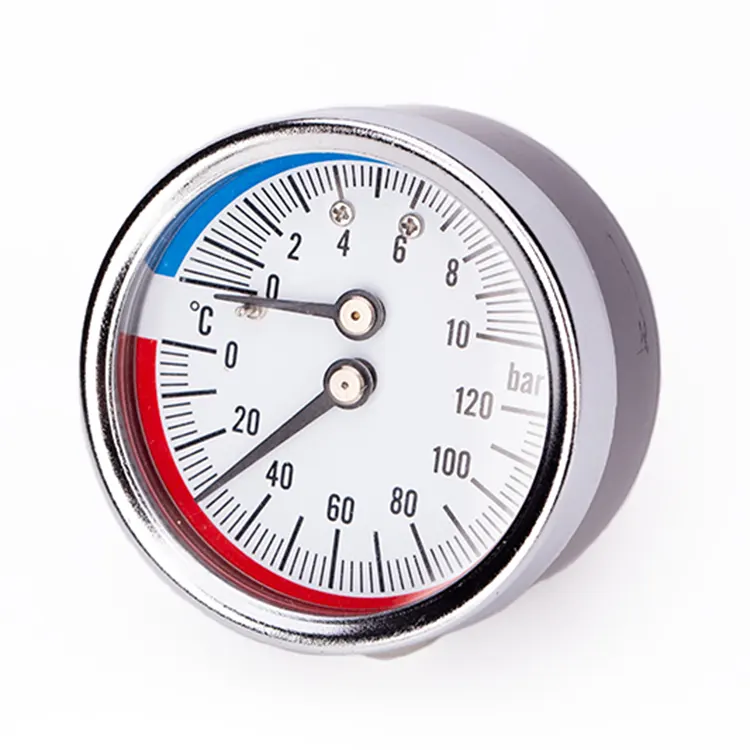

The Temperature And Pressure Gauge offers flexible usage, thanks to its combined indication of pressure and temperature. With pressure displayed at the top and temperature at the bottom, the temperature scale is cleverly bent downward for clear readability. Alternatively, the gauge can also be configured with temperature at the top and pressure at the bottom, accommodating different preferences and needs.
The instrument boasts impressive scale ranges, offering pressure readings from 0 to 16 bar and temperature readings from 0 to 150 °C. It is ideally suited for heating systems, as well as combi-boilers that provide both hot water and heating, ensuring accurate and reliable monitoring of critical parameters.
● Heating systems
● Combi-boilers with hot water and heating
● Combined indication for pressure and temperature,
At the top pressure, at the bottom temperature, temperature scale bent downward
At the top temperature, at the bottom pressure
● Scale ranges to 0 … 16 bar, 0 ... 150 °C
The thermomanometer with bimetal system is fitted directly at the measuring point via a stem. The valve allows the measuring instrument to be unscrewed without having to empty the heating system first. Due to the combination of a pressure gauge and a bimetal thermometer the instrument can be used flexibly in a wide variety of applications.
|
Nominal size in mm |
40, 50, 63, 80 |
|
|
Accuracy class |
■ Pressure: 2.5 (EN 837-1) ■ Temperature: ±2.5 °C Scale ranges ■ Pressure: 0 ... 1 to 0 ... 16 bar ■ Temperature: 0 ... 100 to 0 ... 150 °C |
|
|
Working ranges
|
■ Pressure: Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value
■ Temperature: Full scale value |
|
|
Measuring elements |
■ Pressure: Bourdon tube, copper alloy ■ Temperature: Bimetal coil, copper alloy |
|
|
Process connection |
R 1/2 ISO 7 (male), 22 mm flats |
|
|
Connection location
|
Lower mount (LM) 1 Centre back mount (CBM) |
|
|
Case |
Plastic, black Or Steel, black lacquered |
|
|
Movement |
Copper alloy |
|
|
Dial |
Aluminium, white, black lettering Pressure scale marked in blue, temperature scale marked in red |
|
|
Pointer |
Aluminium, black |
|
|
Window |
Plastic |
|
■ Other process connection
■ Shut-off valve, copper alloy
■ Instrument glass (with slip-on bezel)
■ Other scale ranges
■ Special scales
