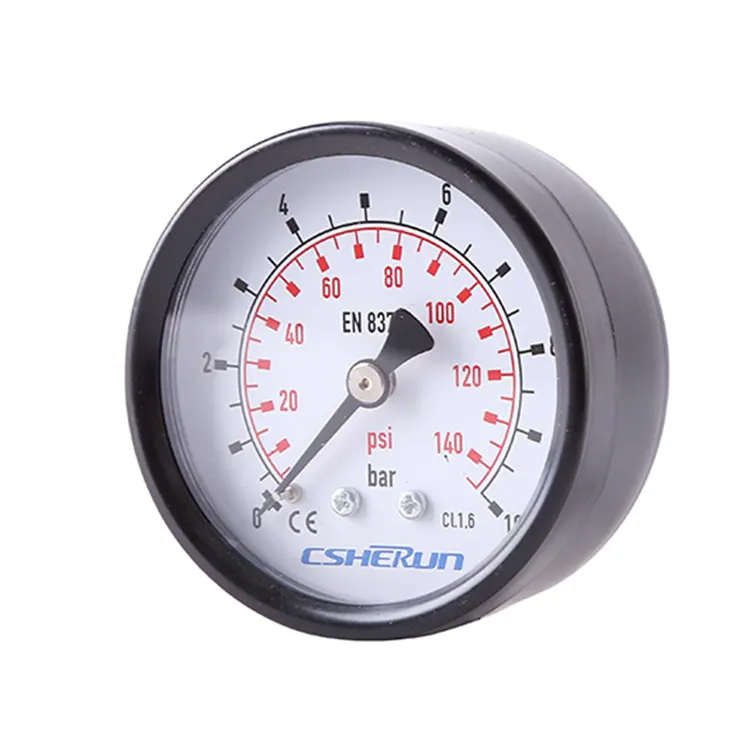

The state-of-the-art Industry Pressure Gauge, manufactured in China by CSHERUN, excels in measuring gas pressure, including micro-pressure, while offering over-pressure protection. Crafted with a robust copper alloy case, it ensures both precision and durability. Designed specifically for media with low viscosity, non-crystalline properties, and non-corrosive effects on copper alloys, it adheres to the safety regulations outlined in the EN837-2 standard to guarantee accuracy and reliability when measuring gases or vapors.
For further customization, CSHERUN offers special dial markings tailored to your unique needs. Additionally, we can print your company logo on the dial, adding a personalized touch that reflects your brand identity. In essence, CSHERUN's Industry Pressure Gauge combines advanced technology, sturdy construction, and personalization options, making it an ideal choice for professionals across various industries seeking reliable and precise pressure measurement solutions. As a professional manufacturer, we are committed to providing you with the best after-sale service and timely delivery.
● For pneumatic and heating system applications
● Design per 837-1
● Robust steel or stainless steel housing
● Many customized versions available
Suitable for measuring low viscosity, non crystalline, and non corrosive copper alloys.
When measuring gases or vapors, they must comply with the safety usage regulations specified in EN837-2 standard.
|
Design |
EN837-1 |
|
Nominal size in mm |
40 , 50, 63, 80, 100 |
|
Accuracy Class (according to EN837-1) |
Cl2.5: 40 , 50 Cl1.6: 63 , 80, 100 |
|
Measuring ranges
|
-1 … 0bar to -1 … 15bar 0 … 0.6bar to 0 … 400bar |
|
Application area
|
Steady: 3/4 X full scale value Dynamic load: 2/3 X full scale value Short term: Fully scale value |
|
Operating temperature range |
Ambient: -20 …. +60℃ Medium: +60℃ maximum |
|
Temperature performance |
When the temperature of the measuring system deviates from the reference temperature (+20℃): max.±0.4%/10k of the span |
|
Degree of protection |
IP32 (EN 60529) |
|

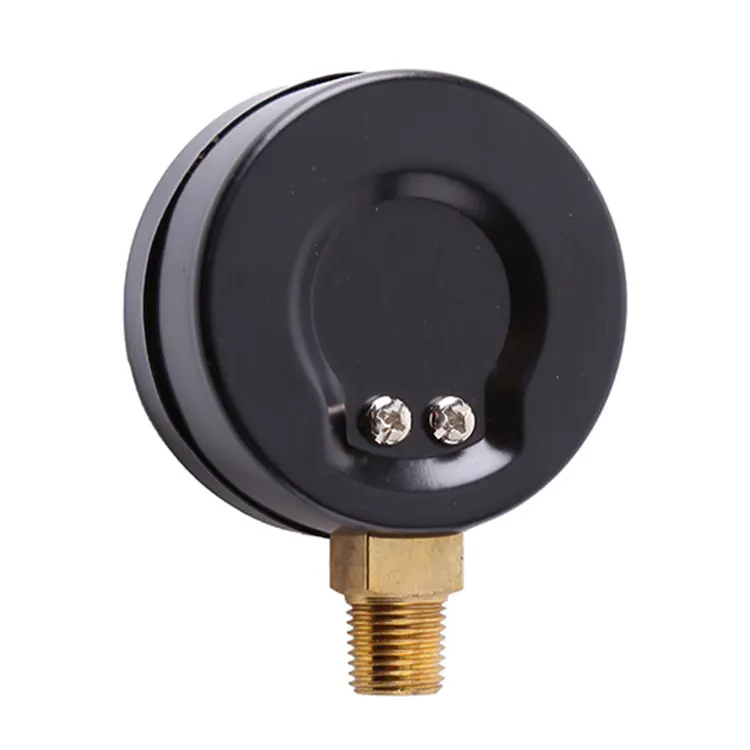

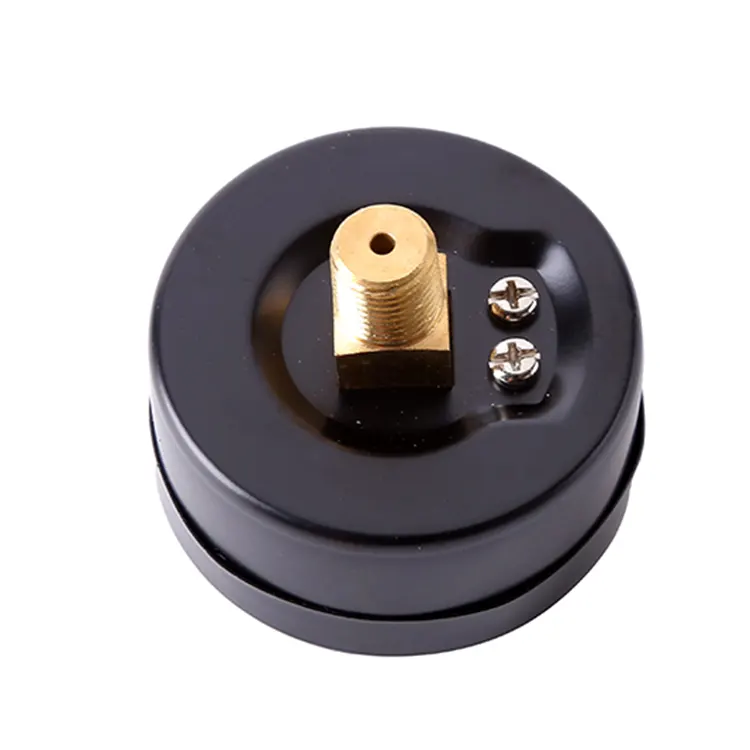

Process connection
|
Copper alloy NS 40 G1/8B -- SW 12 NS 50, 63 G1/4B -- SW14 NS 80, 100 bottom G1/2B – spanner size SW22 NS 80, 100 centre back G1/4B – spanner size SW14 |
|
Connection location |
Bottom or centre back |
|
Pressure element
|
Copper alloy ≤60bar “C” type tube ＞60bar helical tube |
|
Movement |
Copper alloy |
|
Dial |
Aluminium, white, Dial marking black and red |
|
Pointer |
Aluminium, black |
|
Case |
Steel |
|
Window |
Clip-in plastic |
● Other process connection, the connection thread can be PT, NPT, BSPT etc.
● Special scales
● Reference pointer
● Stainless steel case
● Panel mounting bezel
● 3-hole fixing, Panel mounting bezel
● Other special versions
