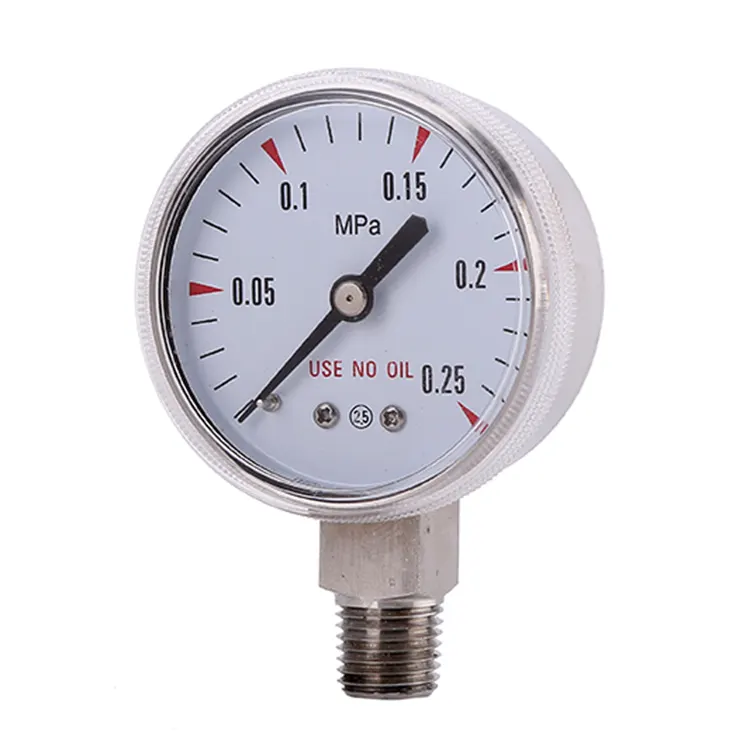

The advanced Compact Stianless Steel Pressure Gauge, manufactured in China, is primarily used for measuring the pressure of gases with high precision. It is capable of measuring micro-pressure and providing a certain level of over-pressure protection, making it versatile for various applications. Constructed from high-quality stainless steel materials, the gauge is built to withstand harsh environments and ensure long-lasting performance.
The China-based manufacturer, CSHERUN, specializes in producing Compact Stainless Steel Pressure Gauges tailored for use with non-highly viscous or crystallizing gaseous and liquid aggressive media, as well as in harsh environments. Our gauges are ideal for applications in machine building and general plant construction, where accurate and reliable pressure measurement is crucial. Additionally, they come with a failure alarm indication for gas cylinders, enhancing safety in CDA (clean dry air) applications.
Customization options are available to suit your specific needs. You can select special dial markings when placing an order, and upon request, we can print your company's personalized logo on the dial, adding a touch of professionalism and brand identity to your equipment. With CSHERUN, you get high-quality, reliable Compact Stianless Steel Pressure Gauge tailored to your requirements.
● For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
● Machine building and general plant construction
● Indication of failure alarm on gas cylinders
● CDA (clean dry air) applications
● Case and wetted parts from stainless steel
● Cost-effective and reliable
● Scale ranges from 0 ... 1 to 0 … 1,000 bar
|
Design |
EN837-1 |
|
Nominal size in mm |
40, 50, 63 |
|
Accuracy class |
1.6, 2.5 |
|
Scale ranges |
NS 40, 50: 0 ... 1 to 0 ... 600 bar NS 63: 0 ... 1 to 0 ... 1,000 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
|
Pressure limitation
|
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value |
|
Permissible temperature |
Ambient: -40 … +60 °C Medium: -40 ... +100 °C maximum |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale value |
|
Ingress protection per IEC/EN 60529 |
IP54 |
|
Process connection |
Stainless steel 316L G1/4B G1/8B |
|
Connection location |
Bottom connection Centre back mount |
|
Pressure element |
Stainless steel 316L C-type or helical type |
|
Movement |
Stainless steel |
|
Dial |
Aluminium, white, black lettering, with pointer stop pin |
|
Pointer |
Aluminium, black |
|
Case |
Stainless steel |
|
Window |
Polycarbonate, snap-fitted in case |
■ Other process connection
■ Diaphragm seal assembly
■ Slip-on bezel, stainless steel or polished stainless steel
■ Window from instrument glass or laminated safety glass (both only in combination with slip-on bezel)
■ Panel mounting flange, polished stainless steel (only for back mount connection)
■ Surface mounting flange, stainless steel (NS 63)
■ Triangular bezel, polished stainless steel, with clamp (only for back mount connection)
