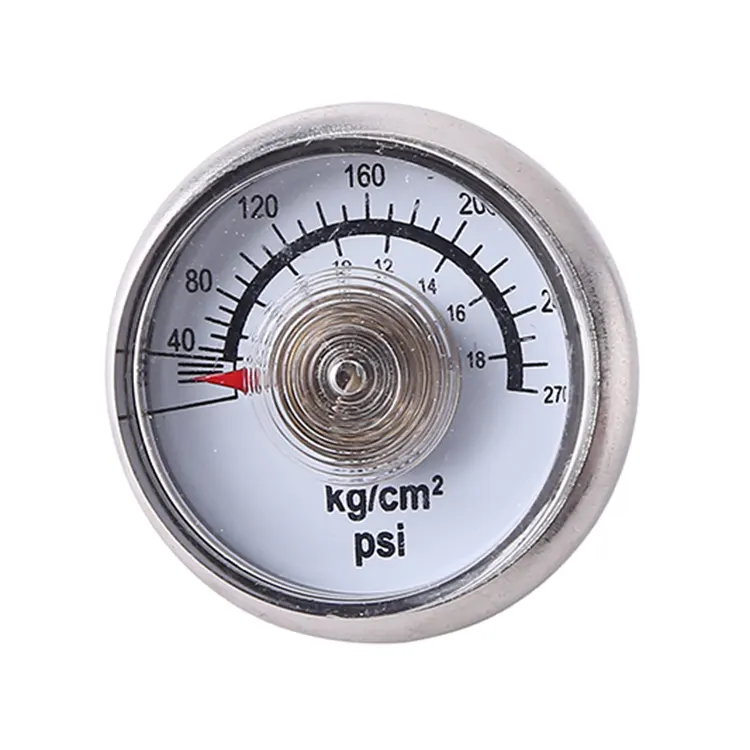

The state-of-the-art Fire Extinguish Gauge, proudly manufactured in China, is specifically designed for pressure measurement and indication in fire extinguishers and fire suppression systems. Compliant with the rigorous test conditions outlined in EN 837-1 and certified by UL, this gauge ensures reliability and precision. Crafted from high-quality stainless steel materials, it guarantees durability and resilience in various environments.
The Fire Extinguish Gauge produced by China Factory (CSHERUN) are widely utilized within the fire safety industry. We offer a customized service where clients can request a special dial marker to feature their company logo prominently on the gauge dial, adding a personal touch and enhancing brand recognition.
● Used for pressure measurement and indication in fire extinguishers and fire extinguishing devices
● According EN837-1 or UL design
● Stainless steel case
● Reliable and cost-effective
|
Design |
EN 837-1 UL |
|
Nominal size in mm |
33, 36, 40, 43 |
|
Accuracy class |
4.0 |
|
Scale ranges |
0 ... 1 to 0 ... 400 bar |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value |
|
Permissible temperature |
Ambient: -20 … +60 ° Medium: +60 °C maximum |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Ingress protection per IEC/EN 60529 |
IP32 |
|
Process connection |
Copper alloy G 1/8B |
|
Connection location |
Centre back mount |
|
Pressure element |
Copper alloy, helical type |
|
Dial |
Aluminium, white, black and red lettering |
|
Pointer |
Aluminium, black |
|
Case |
Stainless steel |
|
Window |
Plastic |
■ Other process connection
■ Reference pointer
■ Special scale
■ Current limiting screws
