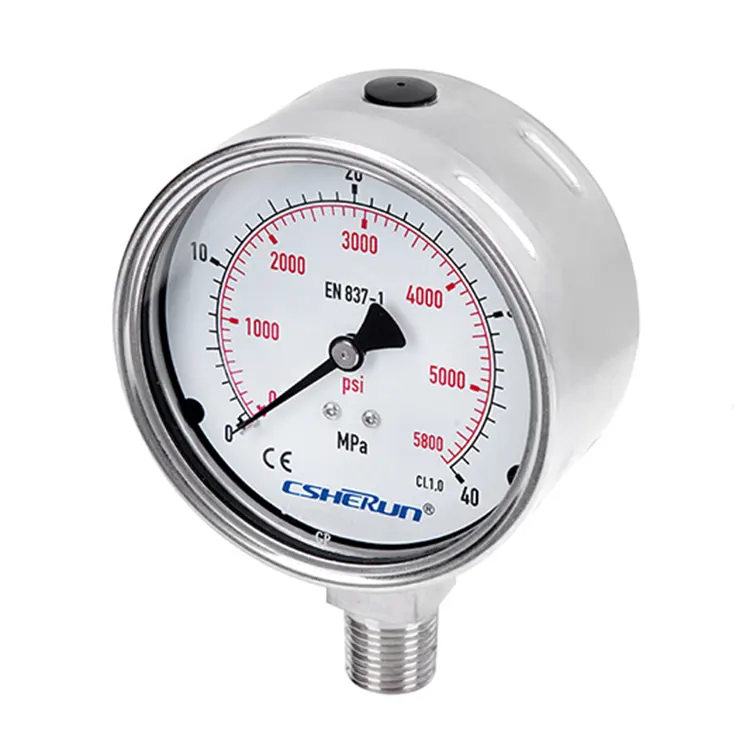

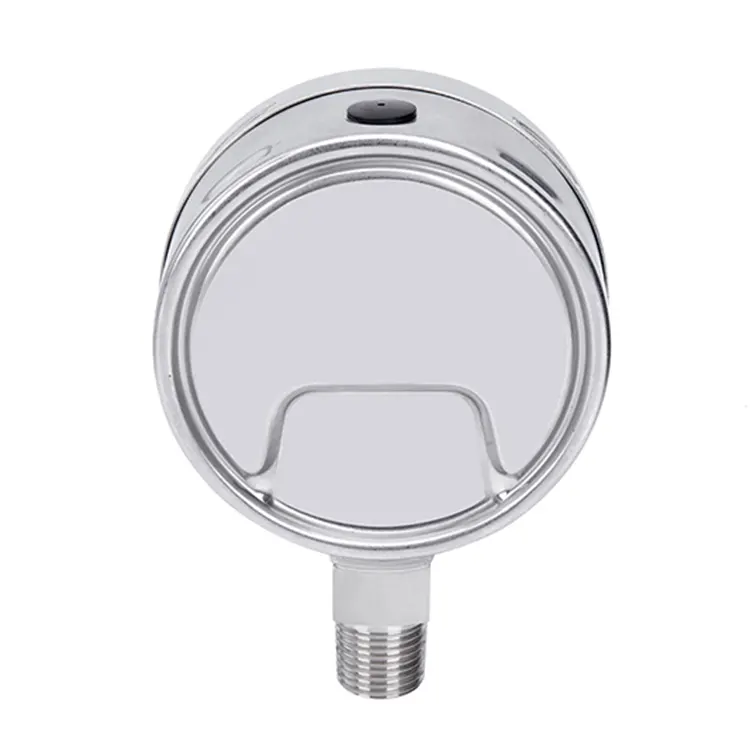

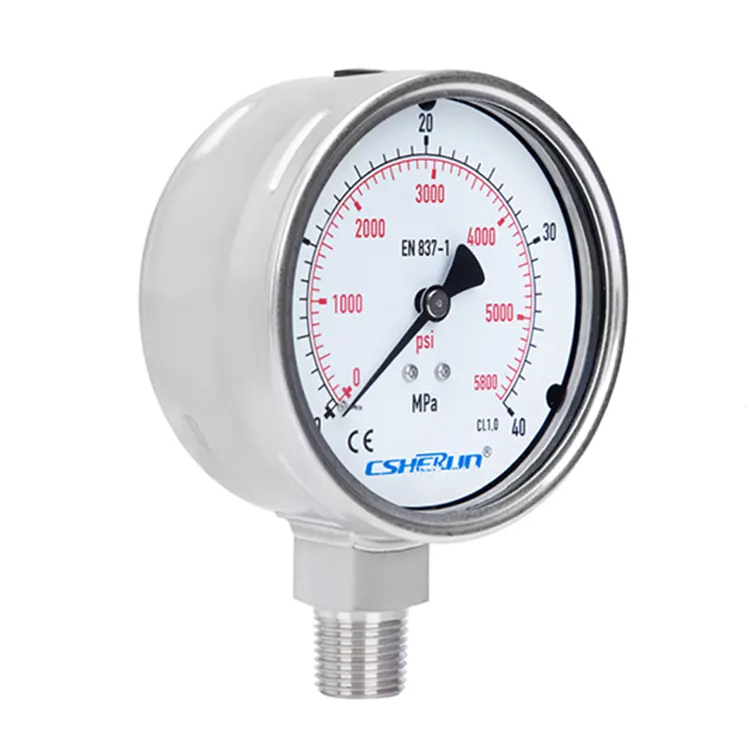

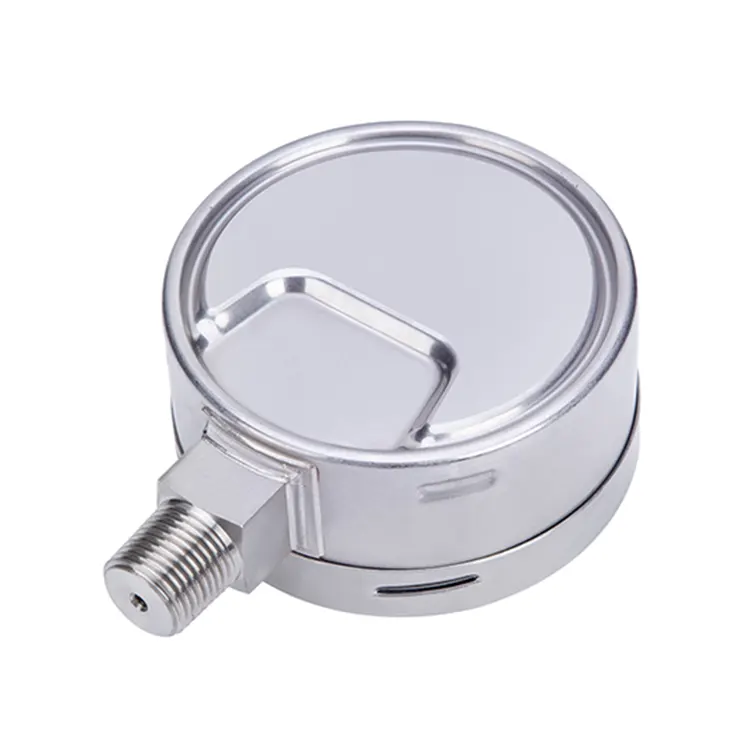

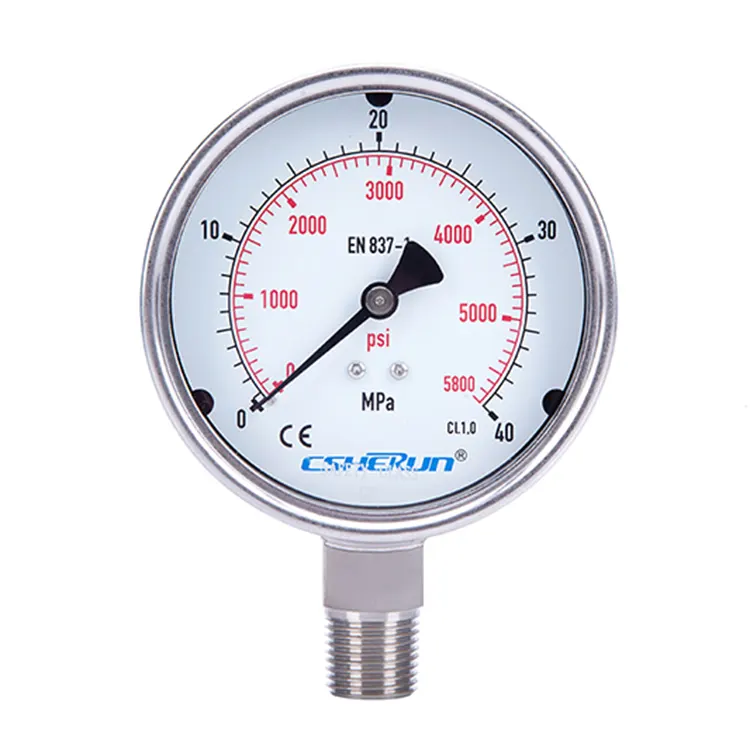

The Monel Pressure Gauge is ideally suited for applications involving gaseous and liquid aggressive media that are not highly viscous or crystallizing, and it stands up well against harsh environmental conditions.
The advanced Monel Pressure Gauge offers high-accuracy pressure measurement for gases, with capabilities for micro-pressure sensing and over-pressure protection. Its stainless steel construction ensures durability, corrosion resistance, and long-term reliability in harsh environments, making it ideal for demanding industrial applications including chemicals, petrochemicals, oil & gas, power engineering, and water technology.
CSHERUN, a China-based supplier, specializes in Monel Pressure Gauges tailored for non-viscous, non-crystallizing media in harsh settings. Meeting NACE standards, our gauges are suitable for the chemical, oil & gas, and power industries. We offer customization options, including special dial markings and personalized logos, ensuring that our high-quality, reliable gauges meet your specific needs.
● Excellent load cycle stability and shock resistance
● High dynamic pressure loads and vibrations
● Longer service life, robust
● Suitability for particularly aggressive media, due to very high corrosion resistance
● Scale ranges from 0 … 0.6 to 0 … 1,000 bar
● For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
● Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
● Sour gas applications, also with NACE requirement.
|
Maximum scale value of pressure gauge (bar) |
≤25 |
＜25 to ≤600 |
＜600 to ≤1000 |
|
Number of pressure cycles |
120 000 |
100 000 |
30 000 |
|
Design |
EN837-1 |
|
Nominal size in mm |
63, 100, 160 |
|
Accuracy Class (according to EN837-1) |
NS63: CL1.6 NS100, 160: CL1.0 |
|
Measuring ranges
|
-1 … 0bar to -1 … 15bar 0 …0.6bar to 0 … 1000bar |
|
Application area
|
Steady: NS63：3/4 X full scale value NS100, 160：full scale value
Dynamic load: NS63：2/3 X full scale value NS100, 160：0.9 X full scale value
Short term: NS63：full scale value NS100, 160：1.3 X fully scale value |
|
Operating temperature range
|
Ambient: -40 …. +60℃ (unfilled liquid) -20 …. +60℃ (Filling glycerine)
Medium: -40 …. +200℃ (unfilled liquid) -20 …. +100℃ (Filled glycerine) -40 …. +100℃ (Filled Silicone oil) |
|
Temperature performance |
When the temperature of the measuring system deviates from the reference temperature (+20℃): max.±0.4%/10k of the span |
|
Degree of protection |
IP65 (EN 60529) |
|
Process connection
|
Monel G1/4B G1/2B |
|
Connection location |
Bottom mount Lower back mount Centre back mount(only for NS63) |
|
Pressure element
|
Monel ≤60bar “C” type tube ＞60bar helical tube |
|
Movement |
Stainless steel |
|
Dial
|
Aluminium, white, Dial marking black and red |
|
Pointer |
Aluminium, black |
|
Case |
Stainless Steel 304 |
|
Bayonet type bezel |
Stainless steel 304 |
|
Window |
Laminated safety glass |
|
Filling liquid |
Glycerine(99.5%) |
■ Other process connection, the connection thread can be PT, NPT, BSPT etc.
■ Special scales
■ Panel mounting bezel
■ Electrical contacts
■ 3-hole fixing, panel mounting bezel
■ Other special versions
